This product is now obsolete and has been replaced by the Sensepoint with Junction Box and the Sensepoint XCL. Flexible Operation
Easy to Use
Simplified Installation
Typical Applications
Part Numbers
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
© Copyright Cadmus Distribution Group Limited trading as: Keison Products, VoIPon Solutions & 4Gon. We accept the following currencies: GBP (Pound Sterling), EUR (Euros) and USD (United States Dollars).

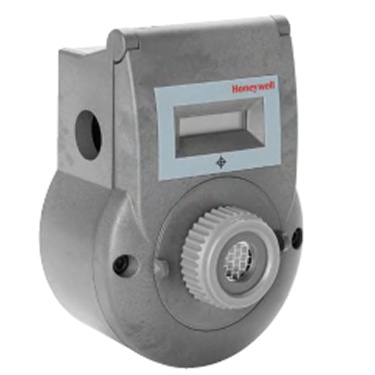

Zellweger Signalpoint Pro
The Signalpoint Pro is an intrinsically
safe, cost effective, toxic and Oxygen
gas detector for use in the toughest
environmental conditions. A 2-wire,
4-20mA loop powered device that can
be used indoors or outdoors in areas
that are routinely washed or hosed down.
Signalpoint Pro is designed for user
friendly operation along with simplified
installation and maintenance. A removable
cover allows sensors to simply plug into
the transmitter without having to open the
main terminal housing. The gas type and
default sensor range for each sensor is
automatically recognised and displayed on
the built-in display.
Hidden push buttons provide user
programmable features such as gas range and
calibration gas level setting. Non intrusive,
one-man calibration is initiated by a
magnetically operated switch. The Quick
Calibration routine, including auto-inhibit to
prevent false alarms, walks the user through
the process using a series of on-screen
prompts to ensure right first time set-up and
operation.
The large terminal compartment includes
a hinged cover to provide easy hands free
access for wiring. When opened, fixing points
are revealed providing secure hidden mounting.
A pre-formed M20 clearance cable entry is
provided with a second easy knockout entry
if required.
Signalpoint Pro is ideal for use with a range of
dedicated gas monitoring controllers or industry
standard PLCs. Either way, users are assured
of being protected in all conditions by
Zellweger gas monitoring solutions.
Wide range of gases available
User programmable detection ranges
IP66 for indoor or outdoor use
Simple plug-in sensors
Non intrusive, one man operation
Quick Calibration with auto-inhibit
Local LCD display
Minimal training required
Plug-in sensor replacement
2-wire operation
Integral junction box
Hinged terminal compartment cover
Use with conduit or cable installations
Refrigeration facilities
Chemical stores
Confined spaces
Laboratories
Car parks
Instrument
SGPTPRXXO1 Oxygen 0.0-25.0%VOL
SGPTPRXXC1 Carbon Monoxide 0-300ppm default range (configurable 0-100ppm up to 0-999ppm in 100ppm increments)
SGPTPRXXH1 Hydrogen Sulfide 0.0-15.0ppm default range (configurable 0.0-10.0ppm up to 0.0-50.0ppm in 1.0ppm
increments)
SGPTPRXXH2 Hydrogen Sulfide 0-100ppm default range (0-50ppm up to 0-500ppm in 10ppm increments)
SGPTPRXXS1 Sulfur Dioxide 0.0-15.0ppm default range (0.0-5.0ppm up to 0.0-20.0ppm in 5.0ppm increments)
SGPTPRXXN1 Nitrogen Dioxide 0.0-10.0ppm default range (0.0-5.0ppm up to 0.0-50.0ppm in 5.0ppm increments)
SGPTPRXXG1 Hydrogen 0-1,000ppm
SGPTPRXXA1 Ammonia 0-200ppm default range (0-50ppm up to 0-200ppm in 50ppm increments)
SGPTPRXXA2 Ammonia 0-1,000ppm default range (0-200ppm up to 0-1000ppm in 50ppm increments)
Accessories
SGPTPPCFA Calibration gas flow housing
02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for Sensepoint, Signalpoint,
Satellite (with adapter), XNX MPD and Series 2000)
Spares
SGPTPPSCA Sensor cover assembly (including hydrophobic barrier)
S3KMAG Magnet
SGPTPRMTL1 Single channel zener barrier MTL7728+
SGPTPRMTL2 2 channel zener barrier MTL7787+
SGPTPRMTL3 Galvanic Isolator MTL 5042
SGPTPRPFG1 Galvanic Isolator PandF KFD2-STC4-EX1
SGPTPRCBLG Hummel cable gland HSK-K-Ex, blue, M20x1.5, elongated (15mm). Part number 1.291.2002.30, including
locking nut Part number 1.262.2001.50.
Replacement Transmitter Kits
SGPTPRXXOX Replacement Oxygen transmitter kit
SGPTPRXXTX Replacement toxic transmitter kit
Spare Sensors
SGPTPPSSO1 0.0-25%VOL Oxygen replacement plug in sensor
SGPTPPSSC1 0-999ppm Carbon Monoxide replacement plug in sensor
SGPTPPSSH1 0-50ppm Hydrogen Sulfide replacement plug in sensor
SGPTPPSSH2 0-500ppm Hydrogen Sulfide replacement plug in sensor
SGPTPPSSS1 0.0-20.0ppm Sulfur Dioxide replacement plug in sensor
SGPTPPSSN1 0.0-50.0ppm Nitrogen Dioxide replacement plug in sensor
SGPTPPSSG1 0-1,000ppm Hydrogen replacement plug in sensor
SGPTPPSSA1 0-200ppm Ammonia replacement plug in sensor
SGPTPPSSA2 0-1,000ppm Ammonia replacement plug in sensor
