Analox Ax60 CO2 Safety Monitor



  Multi-point CO2 detector
  Approved by leading global fast food outlet
  Central unit can be checked away from the danger zone
  5-year sensor and electronics warranty
  Low maintenance
  TWA monitoring
  Optional extras protector kit

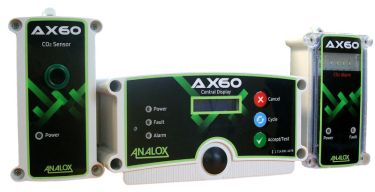

The Ax60 is a carbon dioxide (CO2) detector made by Analox, which can be easily mounted on the wall.

It allows multiple placement of Alarm and Sensor units for CO2, these are all connected to a Central Display.

The Alarm units all have a high-intensity LED strobe light, suitable for warning people about danger in noisy environments and an audible sounder.

The Ax60 offers three levels of alarm, all triggered by an increase in CO2. A low alarm is activated at 15,000 ppm (1.5%) and a high alarm is activated at 30,000 ppm (3%).

The Ax60 also features a time-weighted average alarm which is activated when there is 5000 ppm (0.5%) of CO2 over the last eight hours, this exceeds the average exposure measurement.


Datasheet
Manual


System

  Warranty - 5 years
  Warm-up time - 40 seconds
  Operating temperature range - -5 C to +50 C, +23 F to +122 F
  Approvals - CE, EN50270, IEC 61010 (UL), DIN 6653 (TUV)

Central Display

  Display - LCD dot matrix (backlit)
  Relays - 2 off, normally open. Rating 1 A/30 V AC/DC
  IP Rating - IP54

CO2 Alarm

  Strobe - white LED strobe > 100 cd (optional blue or red filter).
  Sounder - min 80 dBA @3 m (9.8 feet).
  IP Rating - IP55

CO2 Sensor

  Gas detected - carbon dioxide
  Measurement technique - infrared
  Range - 0.1% to 5%
  Alarm setpoints - 0.5% (8 hour TWA), 1.5%, 3.0%
  IP Rating - IP55

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
