HomeEnvironmentalDust Monitors › Casella Measurement 176000A Microdust Pro Dust Monitor


176000A Microdust Pro Dust Monitor


Real-Time Dust Monitor

This product has been replaced by the CEL-712 Microdust Pro.

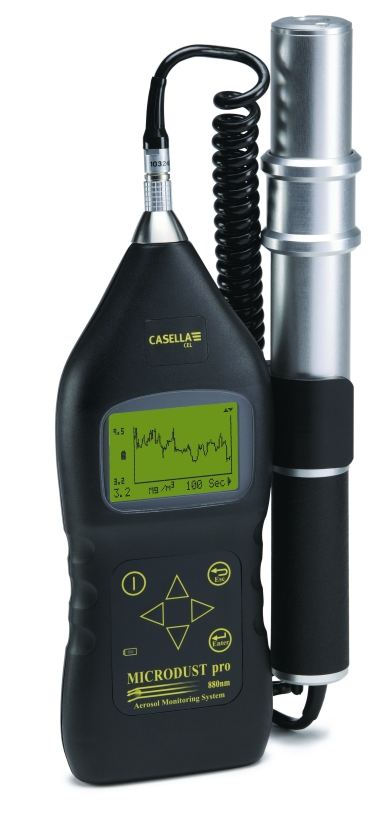

The Microdust Pro is a rugged, hand-held, data-logging meter for the real-time detection of airborne dusts, fumes and aerosols.

It has a large LCD display and a unique graphical facility, allowing the user to instantly view the dust level and trends.

It is ideal for walk-through surveys of ambient and indoor workplace environments. A quick, easy to use instrument, giving the user additional qualitative data which cannot be gained by gravimetric air sampling methods alone.

This extremely versatile instrument can also be used with a range of accessories for static and size selective sampling applications.

Key Features:

  Unique real-time graphical display
  Extensive range from 0.001 to 2500 mg/m3
  Removable sampling probe
  Rugged design for harsh environments
  Multi language operation
  Sampling for Respirable, PM2.5 & PM10
  Field calibration check
  Rechargeable or dry cell operation

Applications:

  Construction / demolition sites
  Boundary monitoring
  Occupational health surveys
  Process monitoring
  Filter efficiency testing
  Walk through workplace surveys
  Pharmaceutical manufacturing & testing
  Spray booths / powder coating

Static Monitoring

The Microdust Pro can be used in conjunction with an enclosure system allowing the unit to be operated in static monitoring applications.

The system integrates the Microdust Pro with a personal air sampling pump. The particulate is passed through the optical sampling chamber and is deposited onto a filter media. This allows users to obtain both real-time and gravimetric data. The filtered sample can then be weighed or sent for analysis.

PUF size-selective sampling foams can be used in conjunction with this system which enables pre-selection of PM10, PM2.5 & Respirable particulate fractions.

Comprehensive Data-Logging and Software

The Microdust features an internal data-logger with the capacity for storing up to 15,700 data points. Casella Insight Data Management Software operates with the Microdust Pro. This easy to use software enables data to be downloaded, analysed in tabular and graphical format or exported into other software packages.

Ordering Information

176000A:
Microdust Pro Kit includes:
Microdust Pro (0-2500 mg/m3), bellows, calibration insert, batteries, universal PSU, RS232 cable, in carrying case.

176106A (High range version):
As above but with unit range 0-2500 mg/L.

Options:

CEL-90336 RS232 to USB Adaptor.



Data Sheet
Manual

Casella Measurement is now known just as Casella.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
