Dust Detective


Area and boundary nuisance dust level monitoring

For site operators and managers who have a requirement for area monitoring, the Dust Detective is an ideal survey tool, which is quick to assemble, easily deployed and provides data which can be downloaded for evaluation and reporting purposes.

The unit is supplied complete with a Microdust Pro real time dust monitor, Apex Lite air sampling pump and operates off internal alkaline batteries for up to 19 hours*.

Both gravimetric and real time dust data can be obtained, and foam inserts can also be used which allow size selection of PM10, PM2.5 & respirable fractions to be taken.

The unit can be purchased without instruments as an accessory for existing users of Microdust Pro and Apex sampling pumps.

Key Features:

  Gravimetric / real time data
  Ideal for site surveys
  Ease of operation
  Operates up to 19 hours
  Samples for PM10, PM2.5 and respirable fractions
  Individual instruments can be removed and utilised separately
  No external power supply required
  Ideal for remote locations
  Indoor/ Outdoor applications

Ordering Information

Dust Detective Kit: 176171A Comprising: Rugged Enclosure complete with Microdust Pro unit, adaptors, PUF filters, software, download cable and Apex Lite air sampling pump, alkaline batteries.

Dust Detective Enclosure** 176170D (Consists of adaptors, PUF filters and enclosure only).

**Additional Instruments can be ordered separately for kit:.

P104124: (utilises dry cell Apex Lite)
P104105: (Utilises Apex standard with charger base)
B148: NiMH Rechargeable cells for Microdust pro
PC18: Charger



Data Sheet
Manual

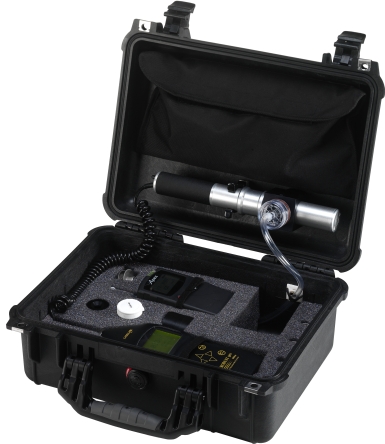

The Dust Detective is a ruggedised enclosure which can hold a Microdust Pro real time dust monitor together with an Apex standard or Apex Lite personal air sampling pump. The unit is simple to assemble and allows static air samples to be undertaken on site.

The (IP65) enclosure is fully weatherproof, and can be secured in location with padlocks (not supplied) for extra security.

The air sample is drawn into the enclosure via filters if required to allow gravimetric samples to be obtained. These filters can also be used to determine the nature of the particulate pollution for source apportionment issues. The Microdust Pro allows real time dust levels to be recorded and data downloaded at the end of the sampling period. Graphs with summary data can be generated. The internal dry cell batteries allow operation for over 19 hours.

Respirable, PM10 & PM2.5 fractions can also be monitored by utilising special inlet foams on the sampling inlet.

This dedicated software package supplied with the Microdust Pro, allows the user to identify trends in dust levels, areas of concern and hot spots which will require action, remediation or further attention.

Records can also be kept on file for future reference.

Casella Measurement is now known just as Casella.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
