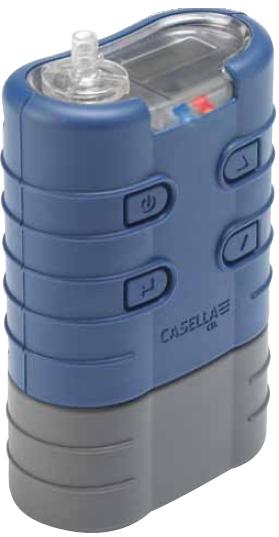

TUFF Personal Sampling Pumps


Intrinsically Safe!

The TUFF range of personal air sampling pumps offer the user an extremely robust, rubber over-moulded unit designed specifically for use in harsh monitoring environments. With the range offering a wide flow rate from 5 ml/ min* to 4.5 l/min.

TUFF pumps are ideally suited to a wide range of occupational health sampling applications from simple abatement sampling of lead and asbestos, to more specialised industrial hygiene monitoring of dusts, fumes and vapours. The units offer excellent functionality at a competitive price.

TUFF has been ergonomically designed for user comfort with easy to read display and high intensity alarm LED’s for fault indication.

The TUFF range meet EN1232 and NIOSH 0600 requirements for personalised sampling pumps in workplace environments.

Key Features:

  Robust and reliable design for harsh environments (IP54)
  Rubber over-moulded sealed case
  Outstanding operation duration
  Exceptional flow control
  Convenient drop in charging/storage system
  Intelligent battery management
  Fast battery charge under 3 hrs (5hrs on 3way)
  Removable NiMH battery pack (1.7 or 2.7 Ah)
  Remaining run time “fuel gauge” (Pro variants)
  Visible replaceable inlet filter
  Diagnostic monitoring of pump and battery service life
  Intuitive user interface and menu
  High intensity status/alarm LED’s
  IEC Ex, ATEX & FM listed intrinsically safe models available
  Intrinisically safe models available for mining applications (M1 certified)
  Advanced programming capabilities (Pro variants)
  High or low flow capabilities

Flow Performance

The TUFF pump incorporates a proven efficient double acting diaphragm pump mechanism with precise digital control. This offers the user excellent real time flow control and stability across a wide range of sampling media.

User Interface/Display

  Intuitive user interface
  Simple navigation/menu structure
  Display of real time flow, sampled volume and run duration
  Alarm display for flow or battery fault conditions
  ‘Fuel gauge’ display for battery information
  Lockable keypad

Intelligent Battery Maintenance and Charging

The TUFF pumps convenient charging cradle allows single or multiple pumps and separate battery packs to be charged.

Intelligent battery monitoring and fast / trickle charge control maintains optimum battery condition and service life. Full charge can be obtained in typically less than 5 hours on fast charge.

Embedded battery pack intelligence tracks state of charge, and long term battery condition.

  Single or 3 way charger formats
  Allows tidy, compact charging and storage of multiple units
  Small storage footprint
  Integral Charge Status LED in spare battery packs

TUFF Pump Range /Functionality

TUFF pumps are available with either 3 or 4.5 l/ min maximum flow rate capability. Standard, Plus and Pro models then provide different levels of functionality and programmability:

TUFF Standard Models:

Entry level pumps for abatement and general sampling applications. With simple single point flow setting, elapsed run time counter and run mode only. Simple battery life indication. Drop in fast charger.

TUFF Plus Models:
Offer additional functionality including: Display of flow set point, real time flow rate, accumulated sample time and volume. Programmable Run Duration mode. Upgradeable to Pro.

Intrinsically Safe (I.S.) Models:

I.S. models are used where hazardous atmospheres can be present from flammable gases or dusts. In this situation, IS models should be used. Additional models are available which satisfy the stringent requirements of mining applications that are rated to ‘M1’, the only pump in the world to have this level of certification.

TUFF Pro Models:

Offers advanced program functionality and download capabilities suited to the most demanding occupational and industrial hygiene applications. Offers all functionality of the Plus model with the addition of:- Intelligent Hours Remaining Battery ‘Fuel Gauge’, Time Weighted Average (TWA) sampling mode, 2 user defined timer programmes (9 on / off times) and onboard data logging for up to 100 runs with download capability to Casella Insight Data Management Software (see separate data sheet).

Battery Packs:

The units operate from removable 4.8V Nickel Metal Hydride (NiMH) rechargeable cells.

There are two capacities:

1.7Ah standard pack for general short term monitoring applications or the high capacity 2.7Ah versions where longer sampling durations may be required.



Data Sheet
Manual

Casella Measurement is now known just as Casella.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
