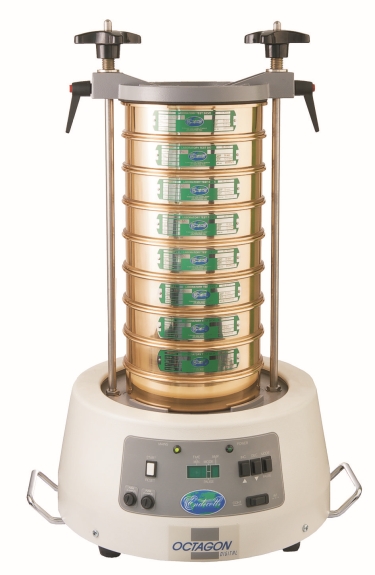

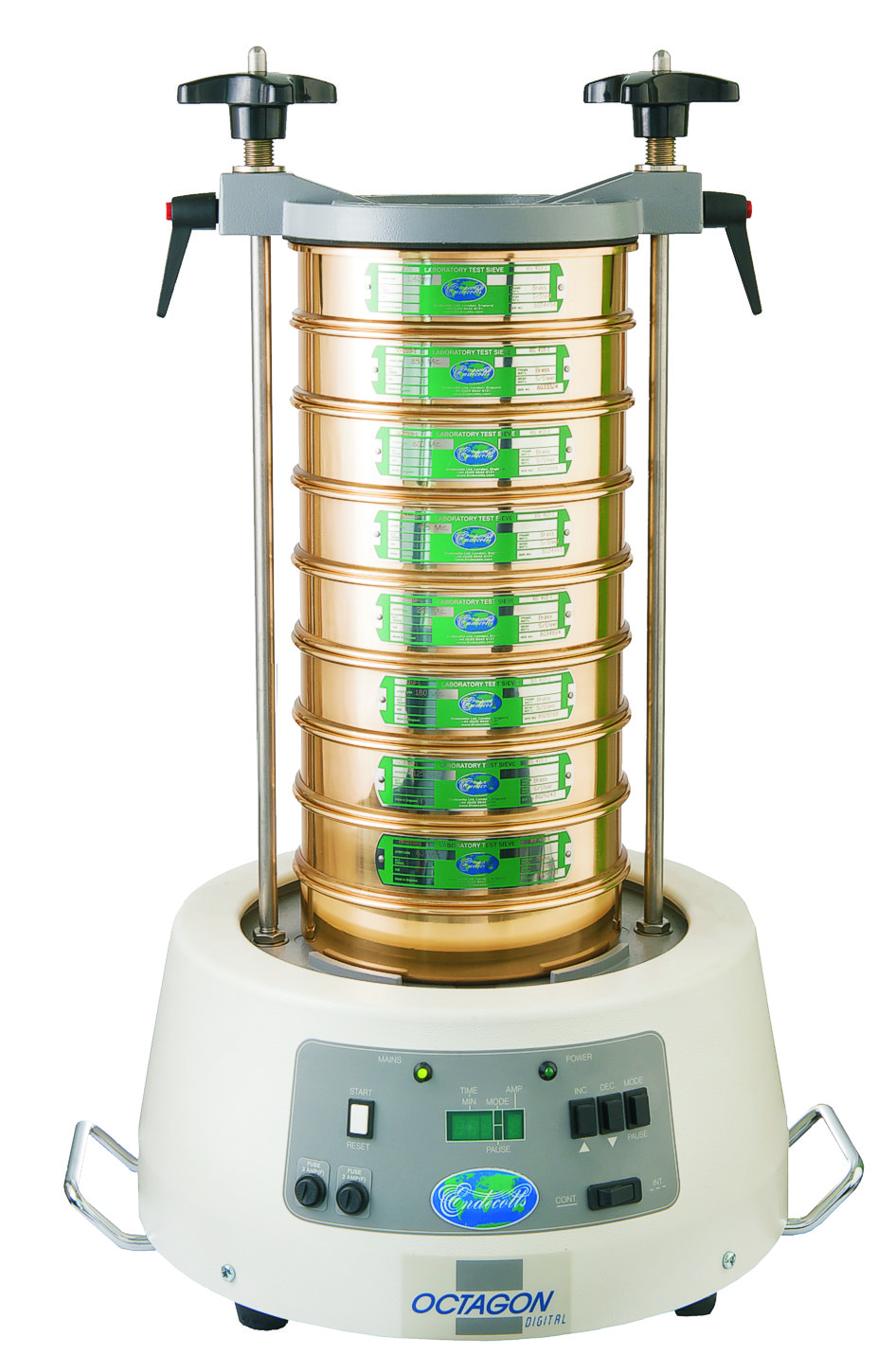

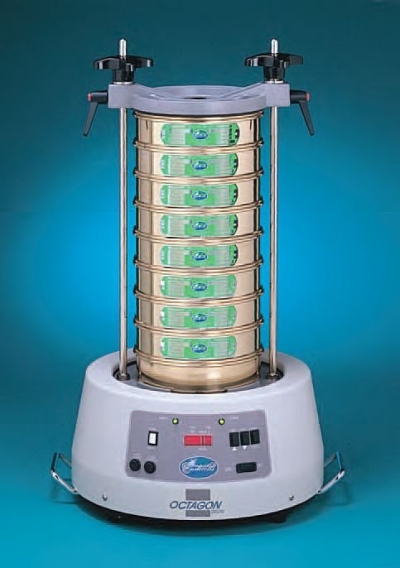

Endecotts Octagon Sieve Shaker


The high performance digital shaker


This product is now obsolete and has been replaced by the Octagon 200.

The Octagon is ideal for laboratory or on site use. it is robust, compact and sufficiently lightweight to be portable. A digital display makes the setting of the microprocessor controlled functions very straightforward.

The Octagon is powered by an electromagnetic drive which has no rotating parts to wear making it maintenance free and extremely quiet in operation. The vibratory action produced by the power unit moves the sample over the sieve in a unique way producing faster, more efficient sieving, while the rapid vertical movements also help to keep the apertures from binding.

The Octagon's digital controller is used to set both the process time and the amplitude setting while a further control enables the vibration to run continuously or intermittently. Intermittent vibration improves performance and helps to clear apertures that may have become blocked. The controller will also set the duration of both the on and off times of vibration. The Octagon Digital offers total flexibility enabling optimum settings to be established for virtually any material under test

Octagon shakers are fitted with a unique clamping device that ensures sieves are held firmly without over-tightening and allows them to be quickly removed and replaced. Non-metallic springs and anti-vibration mountings are fitted to isolate vibrations from work surfaces and reduce noise levels.

Large Version

  Height excluding rods: 210mm
  Diameter: 410mm (handles 2x35mm)
  Unpacked weight: 43kg
  Packed weight: 65kg
  Power: 230V 50Hz 300VA, 115V 60Hz 300VA
  Other voltages on request
  Accommodates up to 8 full height or 18 half height 200mm/8" diameter sieves plus lid and receiver

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
