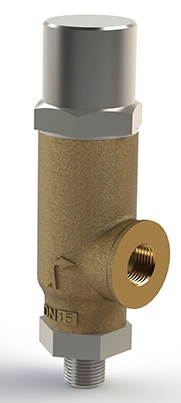

Gresswell Valves FIG154 High Pressure Relief Valves


Gresswell Valves have produced the FIG154 and FIG254 gunmetal-bodied high pressure side outlet relief valves, that have been designed to relieve excess pressure on air, gases and liquids.

The difference between these two Gresswell valves are that the FIG154 has stainless steel inlet connections and internals, while the FIG254 is the all stainless version. However, both versions can be supplied with metal or soft seat options.

Size Range:

  DN15 TO DN25 (1/2” TO 1”)

Pressure Range:

  FIG154 = 1.0 BARG (15 PSI) to 100 BAR.G (1450 PSI)

Pipe Connections:

  Available either screwed or flanged to suit customer’s connection requirements

Features and Benefits:

  Able to accommodate customer’s connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid
  Steam

Applications:

  Liquid pump relief, pipeline and vessel protection.
  Steam boiler, pipeline and vessel protection.
  High pressure.

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
