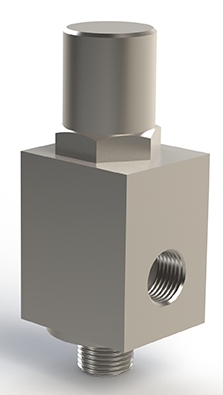

The FIG236, produced by Gresswell Valves, is a range of stainless steel block relief valves that are typically deployed to prevent safe pressures being exceeded in pressurised systems.
The valve lift is proportional to the system over pressure. The FIG236 is commonly used for air, oil, gases and steam, where high discharge rates are not required in thermal and pipeline relief applications.
DN08 TO DN20 (1/4” TO ¾”)
0.7 BAR.G (10 PSI) TO 50.0 BAR.G (725 PSI)
Available male inlet x screwed female outlet (BSP, BSPT, NPT)
Features and Benefits:
Able to accommodate customer’s connection requirements.
Full Cat IV PED approval.
Quality assurance approved to BS EN ISO 9001: 2008.
All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.
Liquid pump relief, pipeline and vessel protection.
For pricing information, please fill out this Enquiry Form and
we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
