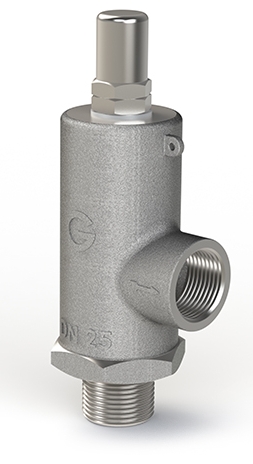

Gresswell Valves G36 General Purpose Pressure Relief Valves
In order to prevent a safe pressure being exceeded in pressurised systems, Gresswell Valves have produced the G36.
The lift is proportional to the system overpressure. The G36 is particularly suitable for most liquid applications where a small discharge often prevents the safe pressure in a system being exceeded.
The Gresswell G36 is also suitable for steam, gases & vapour applications where a low discharge is suitable.
DN15-DN50 (½ 2)
0.5 Bar.g (7 PSI) to 20.7 Bar.g (300 PSI)
Male Inlet x Female Outlet.
Inlet: Threaded G BSP Male to BS EN ISO 228/BS 2779
Outlet: Threaded Rp Parallel Female to BS 21/BS EN 10226/ISO 7
Alternative thread standards, i.e. BSPT or NPT are available upon request.
Flanged connections also available. Most flange standards can be accommodated.
Features and Benefits:
Gresswell Valves are quality assurance approved to BS EN ISO 9001: 2008 and manufactured in accordance with BS EN ISO 4126-1 & BS6759.
Full Cat IV PED approval.
Only 4 springs are needed to cover the full pressure range.
Clear operating and maintenance instructions are supplied with each despatch.
Screwed/Flanged or a combination of both are available as standard.
See data sheets for Discharge Capacities.
All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.
G36 Discharge Capacities
