Maximum operating temperature of 1200 DegC
  Tube diameters of 65, 75 and 100mm
  Heated lengths of 550, 700 & 900mm
  These models utilise a resistance wire heating element wound around a ceramic worktube, forming an integral part of the heating element to ensure excellent thermal uniformity
  Rapid heat up to operating temperature
  Can be adapted to allow a non-oxidising atmosphere or vacuum, by fitting an additional worktube and end seals
  The thermocouple is located in a protected position between the outside of the worktube and heating element, allowing the full worktube diameter to be used

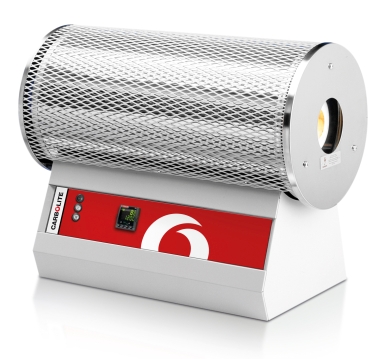

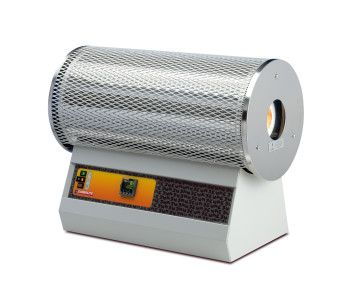

  Normally built on the horizontal base pictured left, this furnace range can optionally be mounted vertically with a separate control box
  Applications in materials research include testing of novel materials under strict temperature and varying atmosphere conditions
  Applications in the electronics industry include testing electronic components and semiconductor materials under inert atmospheres or vacuum
  Applications in instrumentation include testing of temperature sensors such as thermocouples and PT100's, which may require enhanced thermal uniformity
  For enhanced thermal uniformity, three zone models are available

Models in this range:

CTF 12/65/550
CTF 12/75/700
CTF 12/100/900

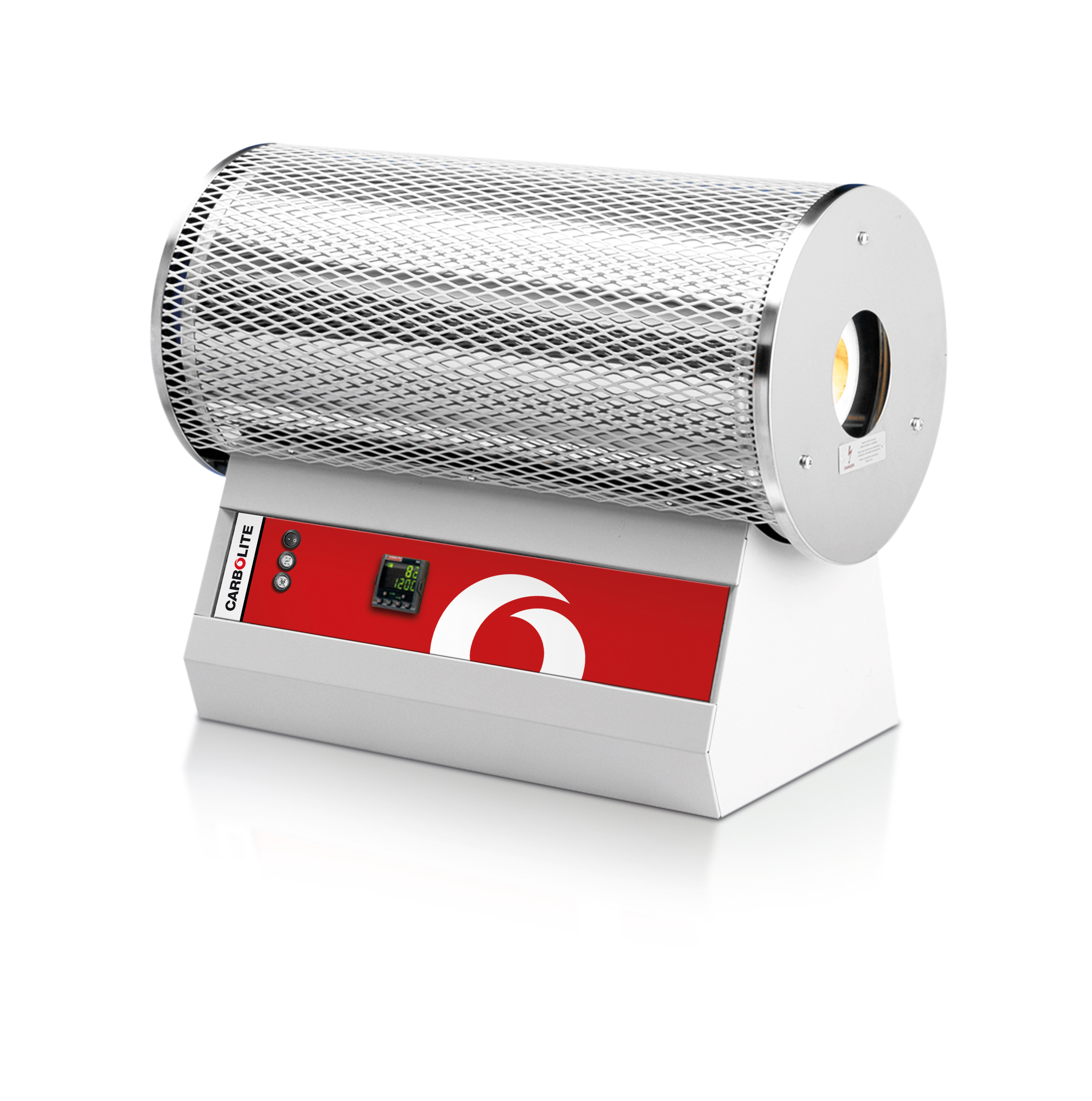

Click on the photo above for a high resolution version.
