The entire range of tube furnaces within the new E-Series 3-Zone Tube Furnaces by Carbolite use free radiating wire elements embedded within the insulation of the furnace body. This type of design is hugely helpful and flexible. The use of tube adapters the same furnace can be used with a variety of tube diameters.

The E-Series can be configured as horizontal or vertical, split and non-split.

A hinged furnace body on the EZS and EVZ models, split into two halves along its length, ensures that the exchange of work tubes is simpler. This also allows the furnace to be used with reactors or work tubes where end flanges would make insertion into a non-split furnace hard.

The division of the heated length into 3 zones ensures excellent uniformity. Each zone has its own controller and thermocouple.

An integral work tube is not includes in the E-Series range of tube furnaces, so one must be selected as an additional item. The type of application influences the work tube length, such as whether the application is for use with modified atmosphere or vacuum. Damage or contamination can be avoided with this use of a separate work tube.

Standard Features

  1200 degC maximum operating temperature
  450 or 600 mm heated lengths
  Provides a longer uniform zone than can be achieved in a single zone tube furnace
  Accepts work tubes with outer diameters up to 60 mm
  Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times
  Models EZS, EVZ: Furnace splits into two halves and accommodates tubes or samples fixed into a test rig
  Models EHC, EZS: Horizontal configuration

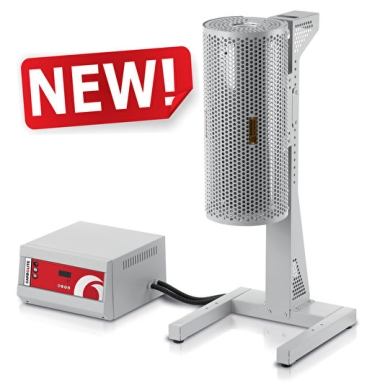

  Models EVC, EVZ: Vertical configuration (can also be used horizontally)
  Models EVC, EVZ: Control module with 2 metre conduit to furnace
  Carbolite 301 digital PID controller with single ramp to setpoint, digital display and process timer
  Outer mesh guard ensures operator safety

Options (specify these at time of order)

  EVC models: Angle adjustment option allows horizontal and multi-angle configuration
  Insulation plugs, gas tight end seals and vacuum connections available
  A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  Wide choice of tube diameters and materials is available: eg quartz, ceramic, metal
  'Retransmission of Setpoint' control configuration to facilitate programmed cooling
