Maximum operating temperature 1200 DegC
  Tube diameters range from 38 - 100mm
  Heated lengths from 400 - 900mm
  These models utilise three resistance wire heating elements wound around the integral ceramic worktube
  Three control systems balance the power to the heating elements to ensure excellent thermal uniformity
  Thermocouples are located in a protected position between the outside of the worktube and heating element, allowing the full worktube diameter to be used

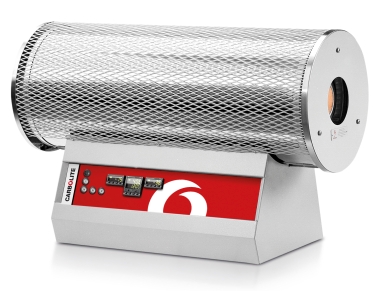

  Normally built on the horizontal base pictured left, this furnace range can optionally be mounted vertically with a separate control box
  Applications in Instrumentation include testing of temperature sensors such as thermocouples and PT100's, which require enhanced axial thermal uniformity
  Applications in Materials Research include testing of novel materials under strict temperature conditions
  Applications in the Electronics Industry include testing electronic components and semiconductor materials
  This range can be supplied with three equal heated lengths, for special applications

Models in this range:

TZF 12/38/400
TZF 12/65/550
TZF 12/75/700
TZF 12/100/900

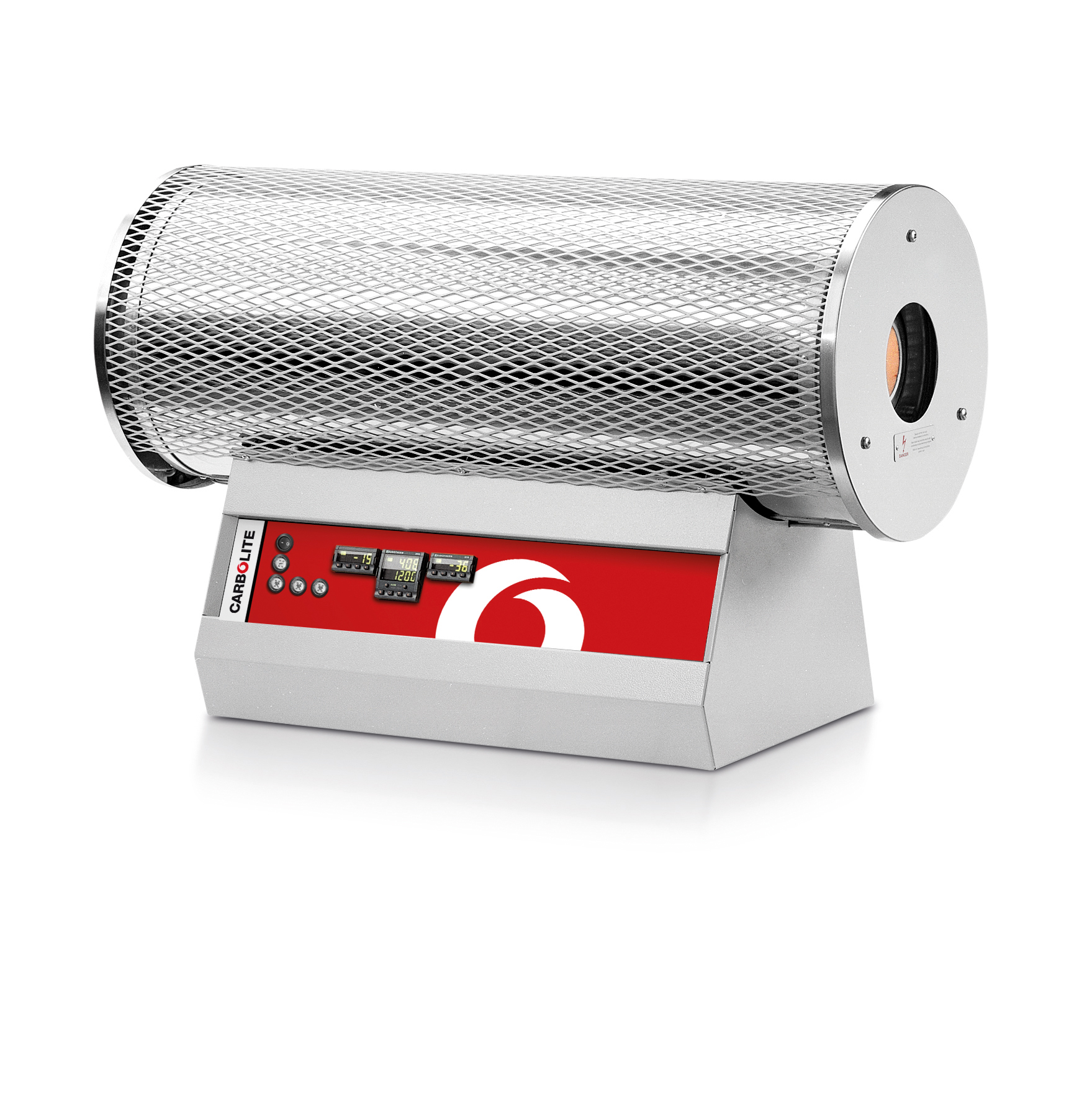

Click on the photo above for a high resolution version.
