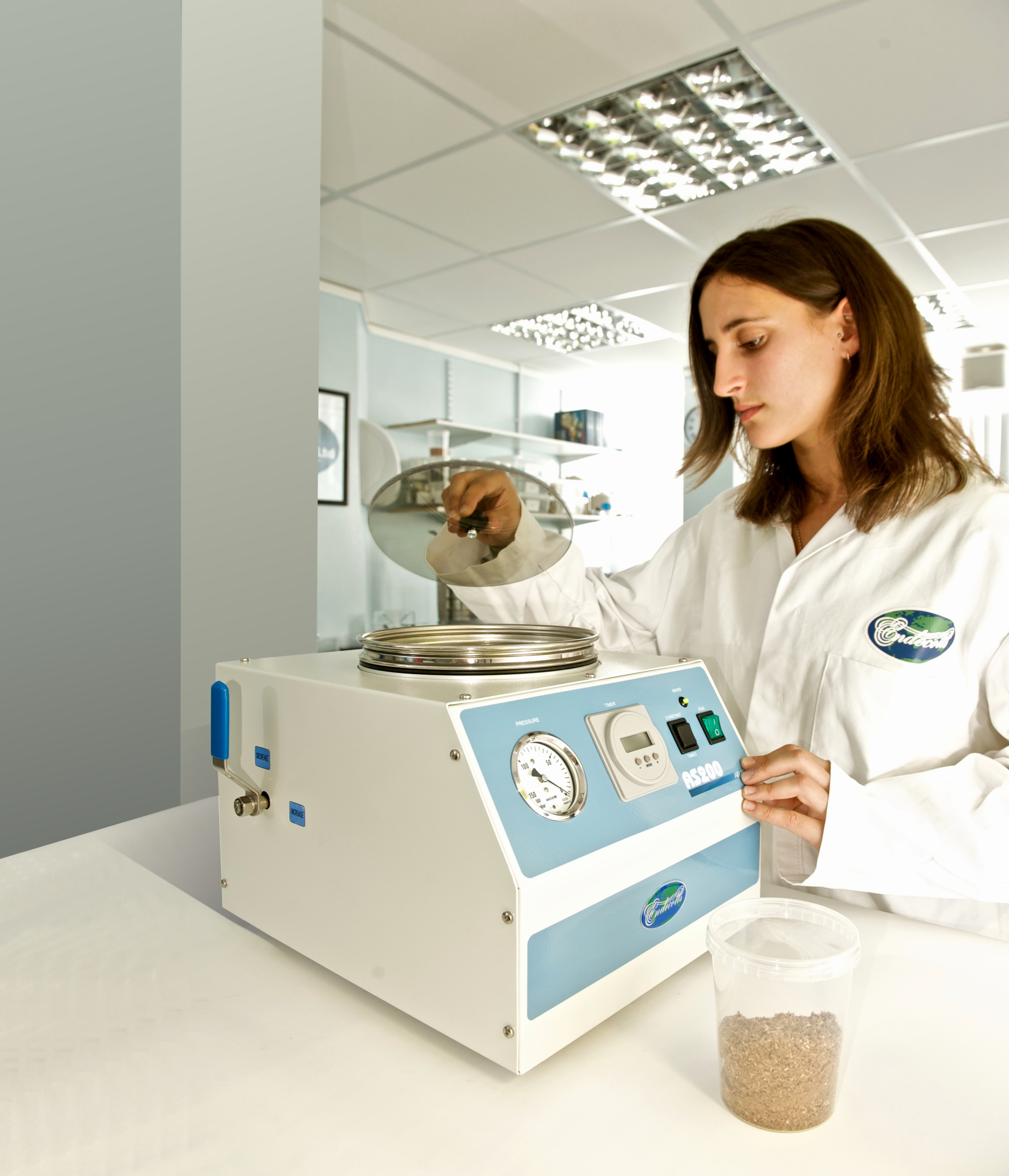

Endecotts Air Sizer


The Airsizer with a separate vacuum unit, provides an ideal and economic solution for sieving of difficult and very fine dry materials.

The Airsizer is supplied with a rear mounted electrical outlet socket and suction pipe spout/adjustment valve for connection to a vacuum extraction unit that collects undersized (passed) sieved sample.

The rear panel also houses a mains inlet filter socket, the mains on/off switch and fuses.

Features

  On/off switch
  Digital Timer (0 - 10mins)
  Constant/Timed
  Vacuum gauge
  Power on LED

Technical Specifications

  Dimensions: Width: 345mm, Depth: 490mm, Height 345mm.
  Weight: 10 Kgs
  Air volume: 480 Litres/Min. (maximum)
  Air pressure: Adjustable from 10 - 125 millibar (negative pressure)
  Sieve diameter: 200mm (Special Sieves available
  Operating voltage: 220-240 V, 50/60 Hz, (110 V available)
  Power consumption: 20W +(2 KW Extractor Unit)

Large Version

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
