Grant Bio PTR-30 360 Degree Vertical Multi-Function Rotator


This product is now obsolete. To see the current products by Grant Bio, please click here.

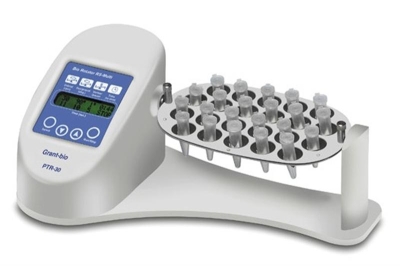

The PTR-30 is a compact and highly efficient variable-speed, variable-angle vertical rotator providing all the functionality in one piece of equipment for thorough mixing of microtubes and reproducible sample preparation.

  360 degree vertical rotation - creates long wave motion for mixing large particles
  Reciprocation - creates long and medium wave motion for medium and large particles
  Vibration - creates short wave motion for mixing for small particle

All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute flexibility.

Suitable for 360 degree vertical mixing applications including immuno precipitations and other affinity matrix applications, prevention of blood coagulation, latex diagnostics.

  360 degree vertical rotation, reciprocation and vibration functions all in one compact product
  Choice of two models - PTR-30 or PTR-60 - with different speeds and microtube capacities
  Vertical rotation speed: 5 to 30 rpm
  Reciprocal rotation: 15 to 90 degree turning angle
  Vibration: programmable in a burst of 1 to 5 seconds
  Fully programmable sequence of functions, including pause


  Optional accessory platform for accommodating tubes of different diameters
  Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display
  Reliable and extremely quiet motor produces regulated and reproducible rotation throughout the speed range
  Compact with a low profile and small footprint - fits neatly into the workspace
  All actions - rotation, reciprocation and vibration - can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application
  Capacity of up to 22 microtubes and a maximum rotating speed of up to 30 rpm.


Data Sheet



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
