Nabertherm

Professional Furnaces with Folding Door or Lift Door

L 3/11 - LT 40/12

Our L 3/11 - LT 40/12 series is the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The furnaces come equipped with either a folding door or lift door at no extra charge.

  •   Tmax 1100 °C or 1200 °C
  •   Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
  •   Highly durable cured vacuum fibre module lining
  •   Casing made of sheets of textured stainless steel (non-rusting design)
  •   Double-walled casing for low external temperatures and high stability

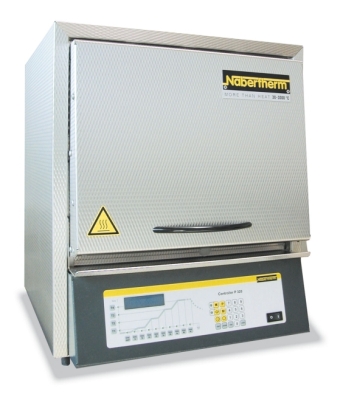

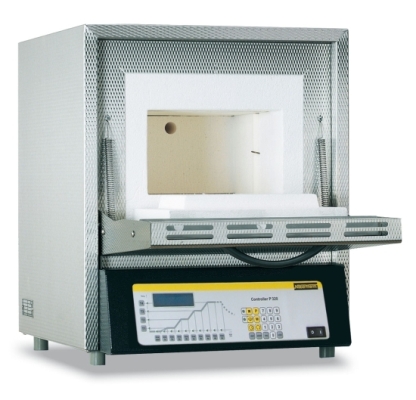

  •   Optional fold-down door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
  •   Adjustable air inlet integrated in door
  •   Exhaust air outlet in rear wall of furnace Silent solid-state power control relay

Over-temperature limit controller
Infinitely variable working air inlet sliding valve

Additional Equipment

  •   Vent, vent with fan or catalytic converter
  •   Over-temperature limit controller with adjustable cutout temperature for thermal protection class 2 in accordance
  •   with EN 60519-2 as temperature limiter to protect the oven and load
  •   Protective gas connection on the rear wall of furnace
  •   Manual or automatic gas supply system

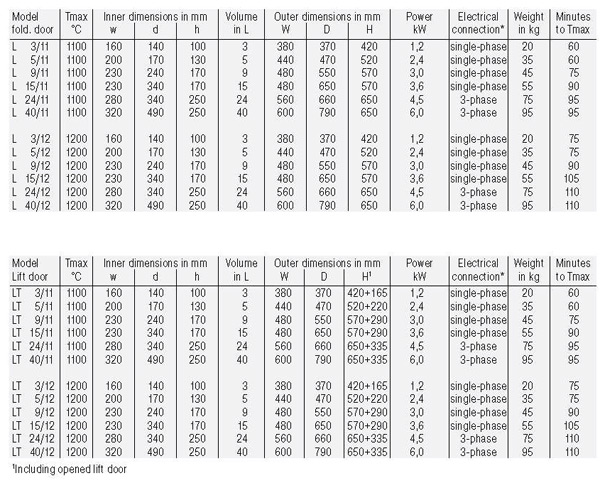

Models in this range include the L 3/11, L 5/11, L 9/11, L 15/11, L 24/11, L 40/11, L 3/12, L 5/12, L 9/12, L 15/12, L 24/12, L 40/12, LT 3/11, LT 5/11, LT 9/11, LT 15/11, LT 24/11, LT 40/11, LT 3/12, LT 5/12, LT 9/12, LT 15/12, LT 24/12 and LT 40/12.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
