Nabertherm

Assay Furnaces

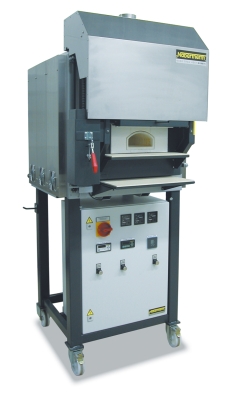

The N 110/HS furnace is especially used for the assay of precious metals where the insulation and heating must be protected from emerging gasses and vapours. The furnace chamber forms a ceramic muffle which can easily be replaced. In the standard design, the muffle is closed with a firebrick plug. A lift door can be installed instead upon request.

  •   Tmax 1300 °C
  •   Muffle heated from four sides
  •   Heating elements and insulation protected by ceramic muffle
  •   Simple replacement of muffle
  •   Operation also possible with open furnace if brick stopper is removed
  •   Tool holder on furnace
  •   Stainless steel exhaust chimney above the door opening for connection of an exhaust system
  •   Work platform with embedded ceramic plate in front of the muffle opening to place load
  •   Front side with large service door for easy access to the furnace chamber behind the muffle
  •   Switching and control unit separate from furnace

Additional Equipment

  •   Lift door, manually operated with counterweight or electrically operated, for easy opening and closing
  •   Electrical lift door drive with 2-hand button operation
  •   Second work platform with embedded ceramic plate below the standard platform
  •   Double-walled casing with fan cooling to reduce exterior temperatures
Customized pit furnace S 73/HS for the assay of large charges in crucibles
Work platform in front of muffle to place load


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
