Nabertherm

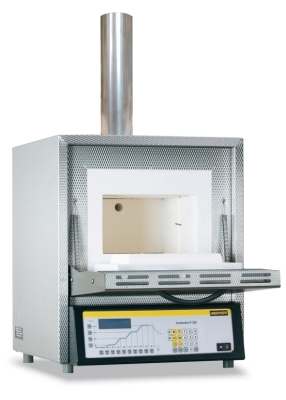

Ashing Furnaces LV 3/11 - LVT 15/11 with Flap Door or Lift Door

LV 3/11 - LVT 15/11

The models LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.

  •   Tmax 1100 °C
  •   Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
  •   Highly durable, high-performance cured vacuum fibre module lining
  •   Casing made of sheets of textured stainless steel (non-rusting design)
  •   Double-walled casing for low external temperatures and stability

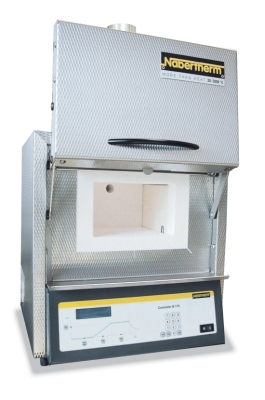

  •   Optional fold-down door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
  •   Silent solid-state power control relay
  •   Air exchanged more than 6 times per minute
  •   Good temperature uniformity due to preheating of incoming air

Additional Equipment

Over-temperature limit controller with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and load

Over-temperature limit controller

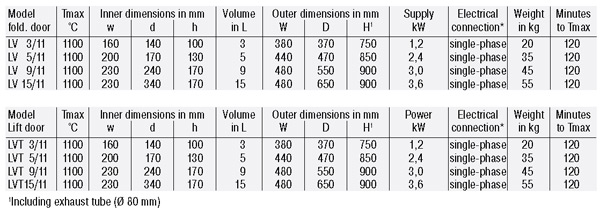

Models in this range include the LV 3/11, LV 5/11, LV 9/11, LV 15/11, LVT 3/11, LVT 5/11, LVT 9/11 and LVT15/11.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
