Nabertherm

Multi-Purpose Chamber Kilns

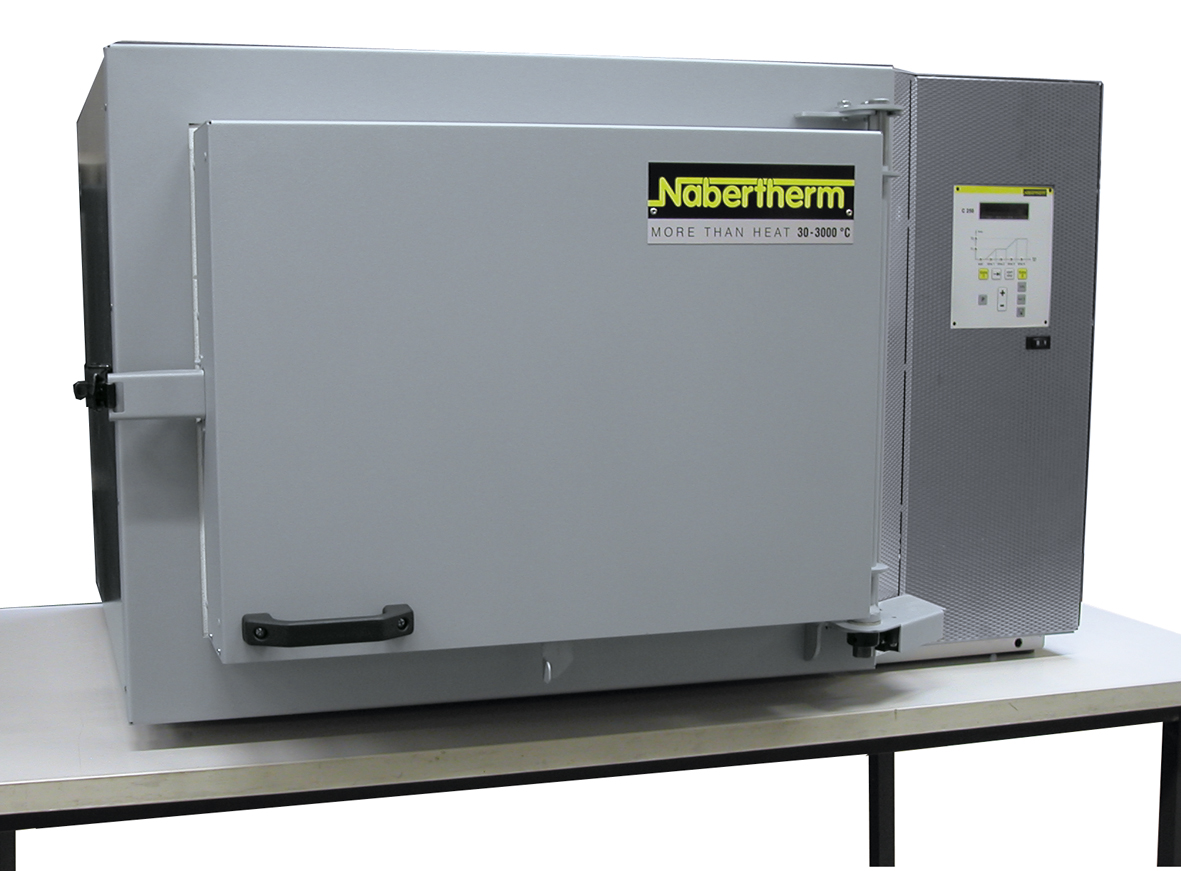

MF 140

Chamber furnace for glass fusing MF 140

The multi-purpose kiln MF 140 is suitable for fusing, porcelain painting and decoration firing of glass and ceramics. Pâte de Verre techniques can also be carried out using this kiln. The heating can be adapted to your process requirements. During glass fusing, for example, the side heating is turned down and only the ceiling heating is used. Simple and compact in structure, the MF 140 is an ideal choice for individuals or for small studios.

Top quality:

  •   Tabletop version
  •   Stand as an option
  •   4-sides heating from both sides, ceiling and bottom (only top heating for fusing)
  •   Ratio of top to side heating power adjustable
  •   High-quality heating elements, positioned in protective grooves
  •   Heating elements with long service life
  •   Long-life 'K' type thermocouple
  •   Safety door contact switch
  •   Multi-layer insulation consisting of lightweight refractory bricks on the hot face and backed by fibre
  •   insulation for low energy consumption
  •   Housing made from high-quality, structured stainless steel plate
  •   Exhaust air vent in the backwall, air inlet opening in the door

    MF140 High Resolution Image

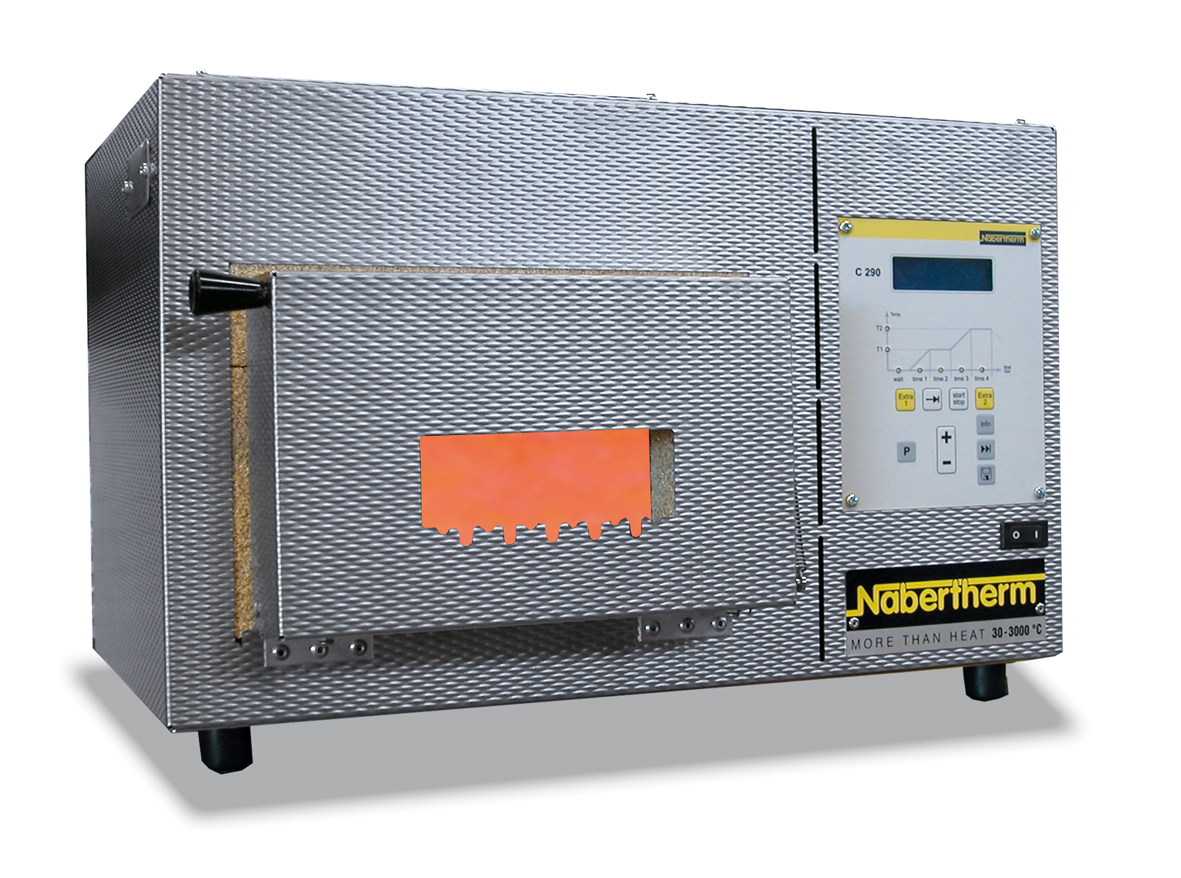

Glass beads cooling furnace/Multi-purpose kiln MF 5

A high-quality furnace is indispensable for professional glass bead tempering. The MF 5 model is the ideal furnace for cooling large glass beads or glass jewelry. For charging the glass beads, the door is equipped with a window which can be closed with a filler piece when the furnace is used for other applications. The infrared heating prevents direct contact with the heating elements so the furnace can be safely opened during operation without heating interruption. With a maximum temperature of 950 °C, this furnace is multifunctional, and can be used for fusing and enameling applications, for decorating and for preheating frits and other materials.

Top quality:

  •   Heating from furnace ceiling
  •   Elements protected in quartz glass tubes for safe open-door operation
  •   Multi-layer energy-efficient insulation
  •   Table-top model
  •   Housing made from high-quality stainless steel
  •   Low energy consumption
  •   Easy to handle
  •   Low-noise heating operation with solid-state relays
  •   Window with rack for charging glass beads
  •   Maximum temperature 950 °C

    MF5 High Resolution Image

MF 140 with base (optional)


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
