Nabertherm

Chamber Kilns, heated from 3 sides

N 140 E N 500 E
N 140 E - N 500 E

Heated from the left and right walls and floor and positioned at an ergonomic height, these models are an economical solution for schools and other institutions with a limited capital budget. These furnaces are ideal for operating temperatures of approx. 900 - 1300 °C.

Top quality:

  •   Heated from two walls and the floor
  •   Heating elements embedded in grooves for protection (N 140 E - N 280 E)
  •   Freely radiating heating elements placed on supporting tubes (N 500 E)
  •   Long-lasting, heavy-gauge heating elements
  •   Special arrangement of heating elements for optimal temperature uniformity
  •   Solid-state power control relays for silent operation (N 140 E - N 280 E)
  •   Fast power switching for precise temperature distribution
  •   Long life Platinum-Rhodium Type “S” thermocouple standard
  •   Door safety switch shuts down power to the elements when the door is opened
  •   Multi-layered lining with light weight insulation bricks and microporus insulation for a cooler shell and low power consumption
  •   Rugged, self-supporting, vaulted arch construction
  •   Solid, double-walled door with long-life sealing
  •   Door is adjustable and can be locked with padlock
  •   Rugged housing design
  •   Kiln floor plate included in delivery
  •   Environment-friendly, long-life powder-coating of housing
  •   Infinitely adjustable inlet air opening
  •   Air outlet in the center of the ceiling ensures good circulation in the furnace chamber
  •   Socket for connection of an exhaust tube (80 mm diameter) for N 140 E - N 280 E, ceiling flap for N 500 E
  •   included in scope of supply
  •   Base included
  •   GS safety mark for controlled safety, CE
  •   As option: Double-walled housing for low outside temperatures. Already standard with model N 500 E

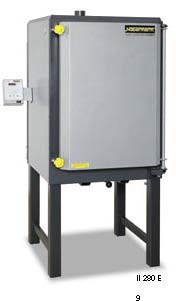

N 280 E

Double walled housing for cool outer surface, with side panels made of stainless steel. Available as an option.

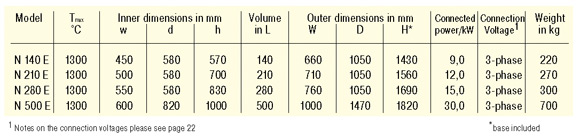

Models in this range include the N 140, N 210, N 280 and N 500.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
