Nabertherm

Chamber Kilns, heated from 2 sides

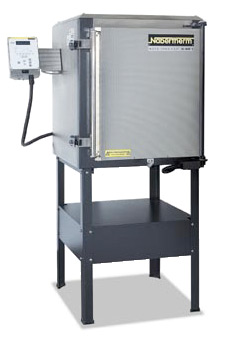

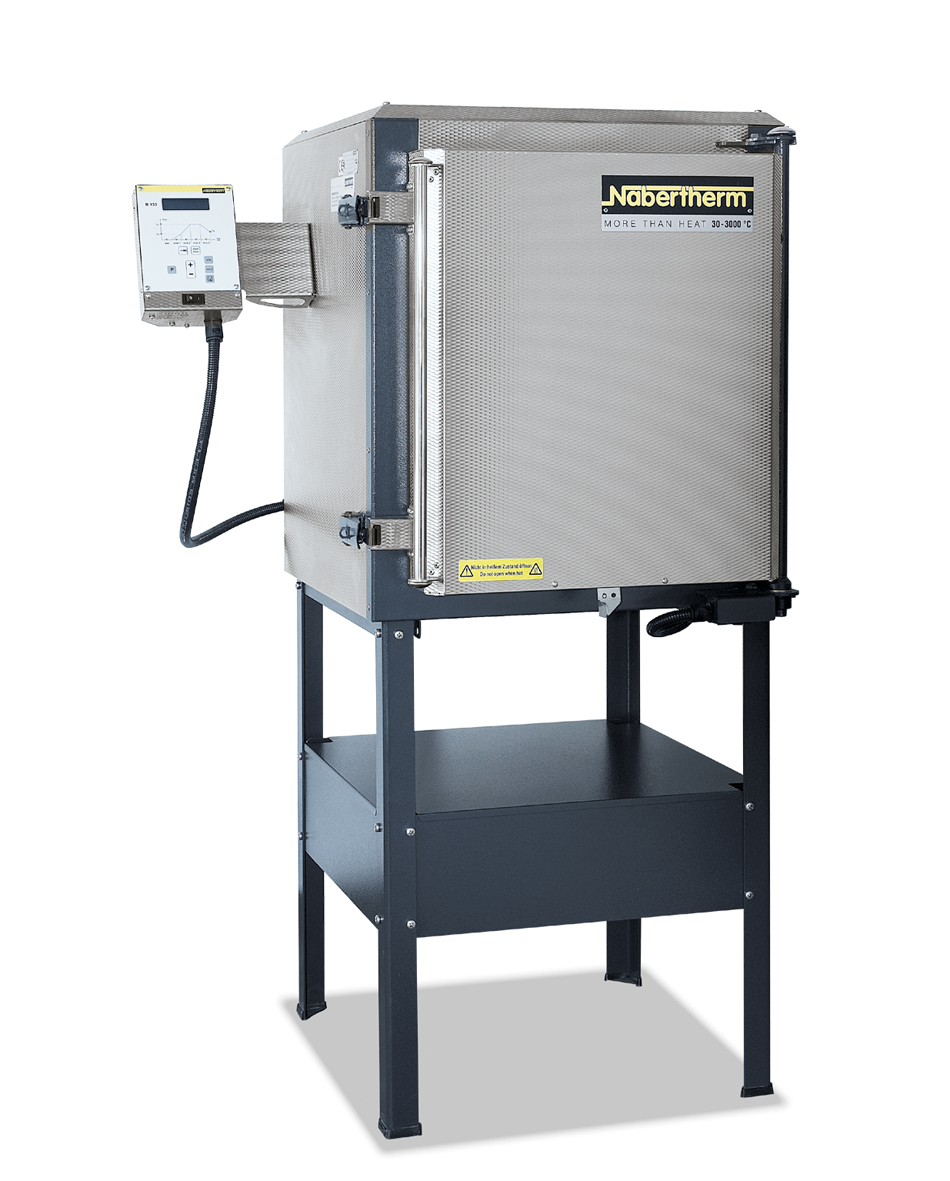

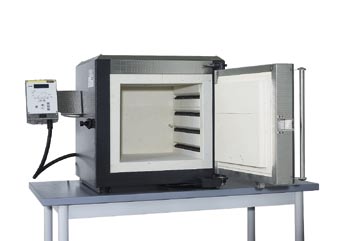

N 40 E as tabletop device N 60 E with base (optional)



N40E High Resolution Image
N60E High Resolution Image

N 40 E - N 100 E

These chamber furnaces impress with their attractive price, appealing design and their excellent craftsmanship. The models N 40 E - N 100 E are ideally suitable for decorating porcelain and glass as well as pottery and fusing applications.

Top quality:

  •   Tabletop mounting
  •   Optional base available
  •   Heating from both sides with high-quality heating elements, protected in grooves
  •   Long-lasting, heavy-gauge heating elements
  •   Solid-state power control relays for silent operation
  •   Fast power switching for precise temperature distribution
  •   Long life Platinum-Rhodium Type “S” thermocouple standard
  •   Double-walled door with low outside temperatures
  •   Door safety switch shuts down power to the elements when the door is opened
  •   Multi-layered lining with light weight insulation bricks and microporus insulation for a cooler shell and low power consumption
  •   Robust, rust resistant, low-maintenance stainless steel housing
  •   Infinitely adjustable air inlet opening in the kiln door for improved ventilation and reduced cooling time
  •   GS safety mark for controlled safety, CE
  •   Air outlet in the ceiling

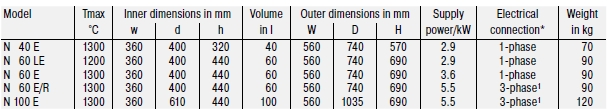

Models in this range include the N 40 E, N 60 LE, N 60 E, N 60 E/R and N 100 E.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
