Nabertherm

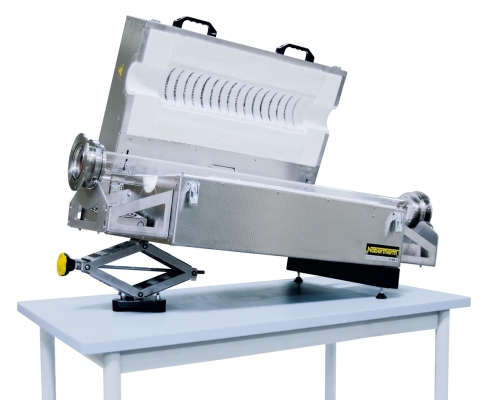

Rotary Tube Furnaces

RSR 80-500/11 - RSR 120-750/11

When the retention of the granular characteristics of the material is important, e.g. when drying or calcining, this rotary tube furnace is the optimum solution. The continuous rotary operation of the furnace tube and the option of operating it under protective gas lead to excellent results.


  •   Design like RS models
  •   Tmax 1100 °C
  •   Type K thermocouple
  •   Compact unit, designed as tabletop model

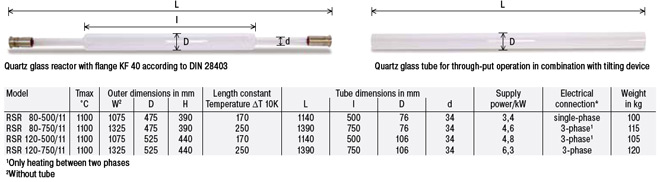

  •   Optionally supplied with quartz glass process reactor or quartz glass tube
  •   Easy working tube or process reactor removal through beltless drive and hinged casing
  •   Infinitely variable drive (approx. 1-20 rpm)
  •   Good flooding of load with process gas due to inlet on one side and outlet on other side of tube

Additional Equipment

  •   Gas-tight rotary feedthrough for connection to gas supply systems (suitable for operation in rough vacuum) upon request
  •   Tilting device
  •   Gas supply systems with gas cooler at the outlet
  •   Three-zone control


Models in this range include the RSR 80-500, RSR 80-750, RSR 120-500 and RSR 120-750.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
