Top quality:

•   Heating from all sides, elements embedded in grooves for protection
•   Long-lasting, heavy-gauge heating elements
•   Solid-state power control relays for silent operation
•   Fast power switching for precise temperature distribution
•   Long life Platinum-Rhodium Type “S” thermocouple standard
•   Lid interlock safety switch shuts down power to the elements when the lid is opened
•   Multi-layer lining with light weight insulation bricks for a cooler shell and low power consumption
•   Chamfered brick edges and mortar-free lid minimize kiln dirt contamination
•   Clean, professional design in a high-temperature stainless steel housing
•   Lid with adjustable quick-release lock and padlock hasp
•   Wear-resistant lid sealing (brick surface on both ends)
•   Counter balanced, spring loaded lid for easy opening and closing
•   Infinitely adjustable inlet air opening in the kiln bottom for improved ventilation and reduced cooling time
•   Air outlet on the side of the kiln with a bleed air collar, 80 mm diameter

•   Lockable castors included
•   GS safety mark for controlled safety, CE
•   Raised base for Top 45 and Top 60 (optional)
•   Bottom heating for Top 140, Top 190, and Top 220 as option and manual zone regulation if desired

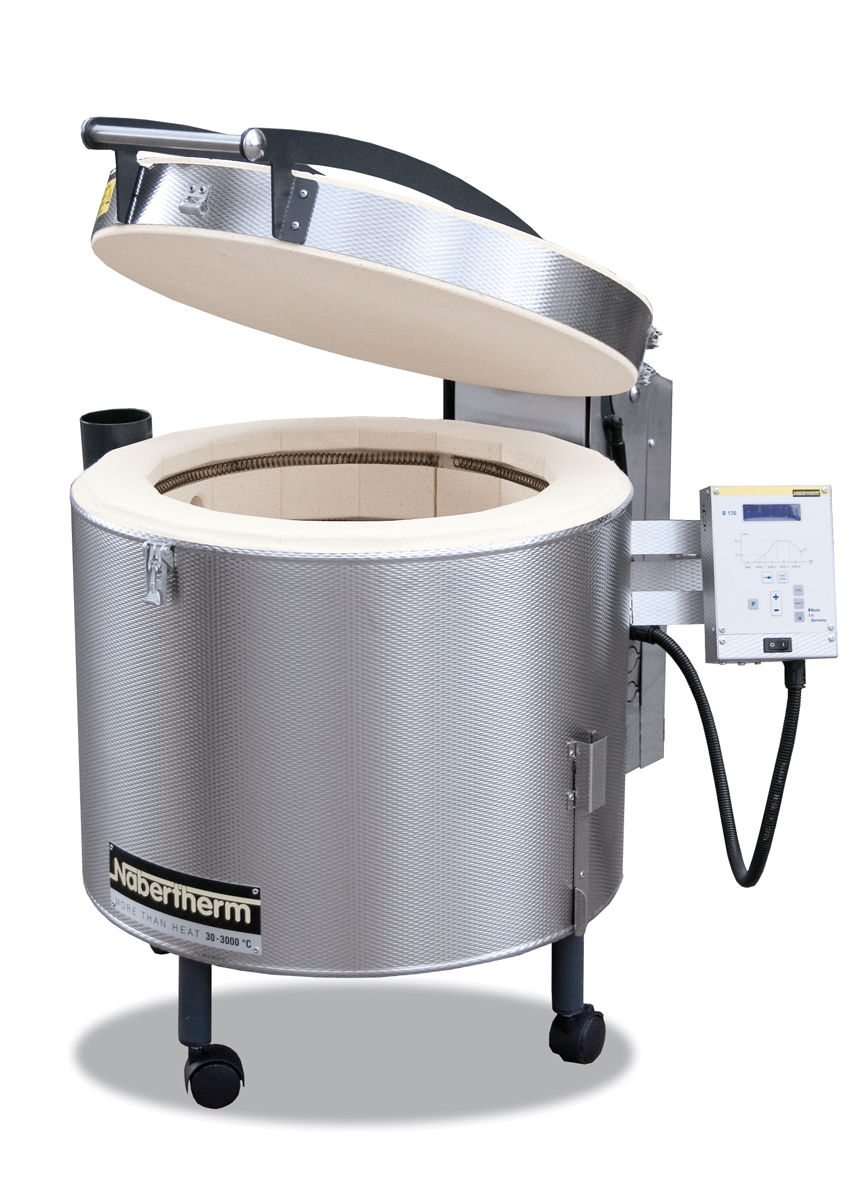

Top45 High Resolution Image
Top60/Leco High Resolution Image

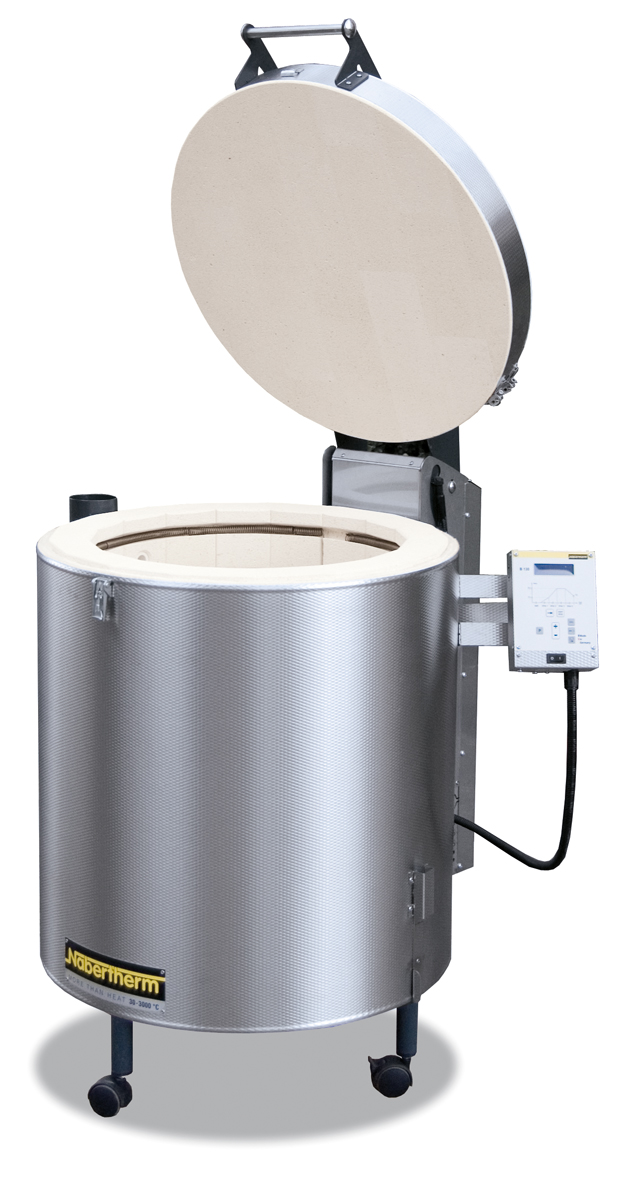

Top100 High Resolution Image

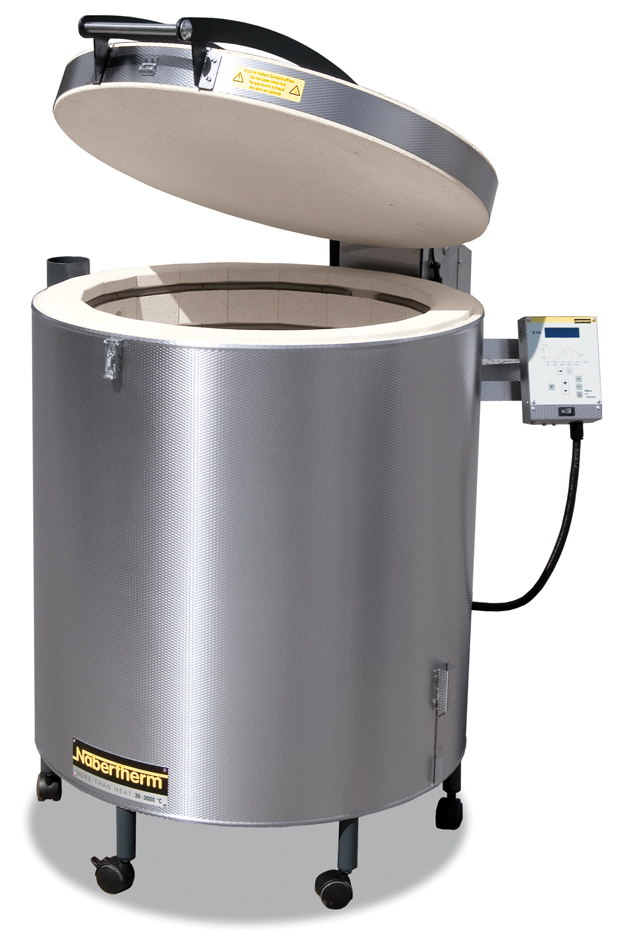

Top140 High Resolution Image

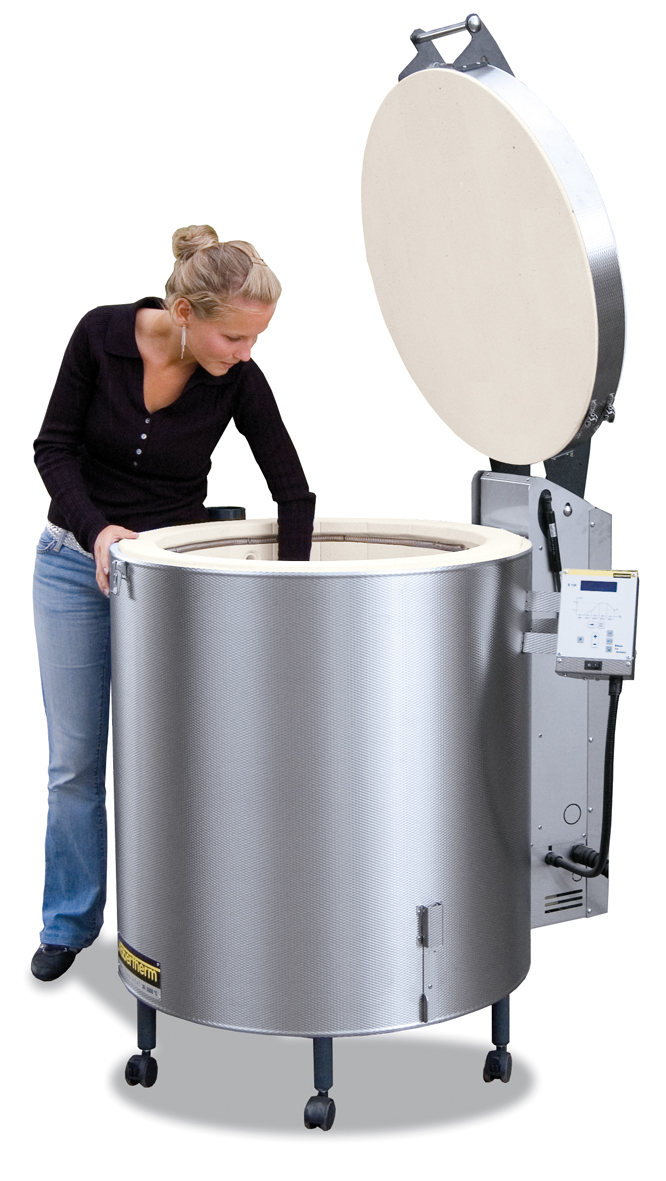

Top190 High Resolution Image

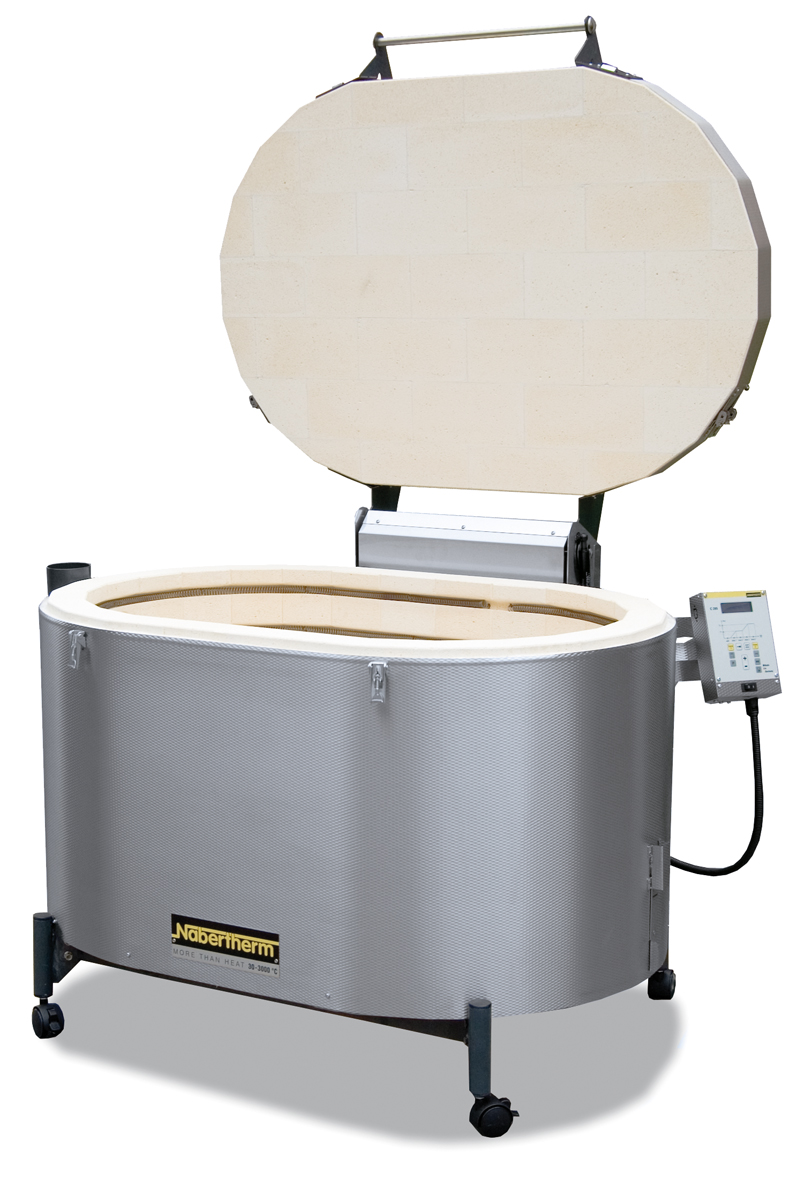

Top220 High Resolution Image

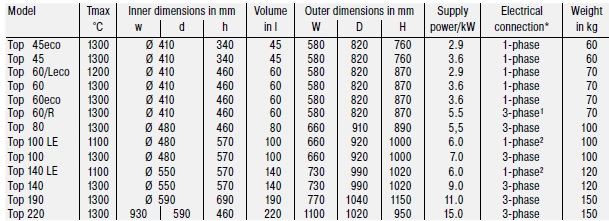

Top 60	Top 100	Top 140	Top 190

Top16/R High Resolution Image

The small but powerful Top 16/R is the ideal kiln for hobby ceramics, porcelain painting, and for small fusing jobs. This reasonably priced kiln model is also suitable for glazing samples and small pieces. This compact all-rounder is capable of doing everything larger models can do.

Top quality:

•   Heating from all sides, elements embedded in grooves for protection,
•   Long-lasting, heavy-gauge heating elements
•   Solid-state power control relays for silent operation
•   Fast power switching for precise temperature distribution
•   Long life Platinum-Rhodium Type “S” thermocouple standard
•   Lid interlock safety switch shuts down power to the elements when the lid is opened
•   Clean, professional design in a high-temperature stainless steel housing
•   Lid with adjustable quick-release lock and padlock hasp
•   Wear-resistant lid sealing (brick surface on both ends)
•   Chamfered brick edges and mortar-free lid minimize kiln dirt contamination
•   Infinitely adjustable air inlet opening in the kiln bottom for improved ventilation and reduced colling time
•   Air outlet on the side of the kiln
•   GS safety mark for controlled safety, CE
•   Lightweight and easy to move

Model	Tmax	Inner dimensions in mm		Volume in L	Outer dimensions in mm W D H			Connected Connection power/kW	Voltage1	Weight in kg
	°C	Ø	h		W	D	H
Top 16/R	1300	280	230	16	440	700	470	2,6	1-phase	22

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
