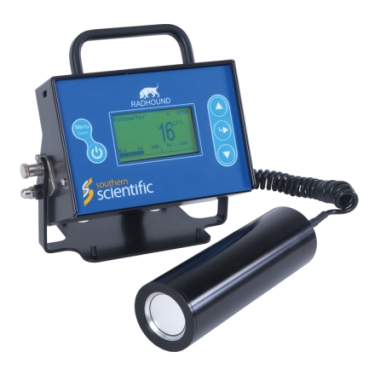

The Radhound Multi-purpose Digital Radiation Meter by Southern Scientific is a meter suitable for use in survey radiation digitally and monitor to contaminations and requirements for radiation protection.

The Southern Scientific Radhound is a feature packed digital radiation monitor that is extremely simple, easy to use and cost effective. The count rate is displayed in large clear numbers and also on a bar scale. A steady display by our smart averaging software can be read with confidence while still providing a fast response.

For source finding, a one button push changes the display to a histogram plot. Alpha and Beta/Gamma counts are displayed separately or on the same screen.

The Radhound also has a time for surveying to count function.

Features

  Low cost and easy to use.
  Clear digital LCD display with backlight.
  GM and scintillation detector options.
  Scaler timer function.
  Ergonomic tilt stand.
  Wall mountable.
  Fully adjustable alarm levels.
  CE marked.

Applications

  Health physics: for contamination monitoring on surfaces, clothing and objects etc.
  Nuclear medicine departments, suitable for 125I, 99Tc etc.
  Radiological survey work and lab use.
  Emergency planning, response and clean up.
  Research applications.

Specifications

  Units - CPS, CPM, uSv/hr with autorange
  Display - Clear backlit LCD display
  Controls - Power, up, down, OK (menu keys)
  Environmental - Operating temperature -10°C to +50°C/Storage temperature -25°C to +60°C
  Power - Lithium Ion rechargeable, typically >12 hours continuous use. Charger supplied
  Cleaning - Radhound is chemical resistant, and can be cleaned with Alcohol wipes
  Range - Typically 0 - to 99999 counts per second (range and units are software selectable depending on probe)
  Response Time - 0.5 seconds
  Functionality - Rate, histogram, timed count, count to time, time remaining to dose, alpha beta discrimination (depending on probe)
  High Voltage - 350 - 1200v selectable in menu (can be locked)
  Averaging - 'Smart Averaging' provides fluid number change, whilst retaining a response time adjustable between slow, medium and fast
  Dimensions 160 x 250 x 85 mm approx (with stand)

Options

  Infra-red serial connection
  RS-232 connection
  Alarming beacon
  Instrument case
  Traceable calibration certificate
  External Probes: SS300/315/330/335, SS440, SS404A, SS404B & SS500/600/700

Data Sheet
Isotope Probe Look-up Table
Probe Selection Guide

Radhound Monitors

SSL/RADHOUND Radhound Bench ratemeter for use with full range of external probes, supplied separately. Rate, Source Finder and Integrator modes. Adjustable tilt stand, for ease of viewing at all angles. Includes rechargeable lithium ion battery and mains charger. Features hardwired, coiled probe cable.

SSL/RADHOUNDX/E Radhound X/E Portable ratemeter with connector for use with full range of external probes, supplied separately. Rate, Source Finder, Integrator and Peak Reading modes. Suitable for use with multiple probes - save calibration settings of up to 5 different probes and switch between them in the instrument menu. Rugged stainless steel housing for use in industrial environments. Runs from 2 x 1.5V C-cell batteries. Requires a probe cable, supplied separately (see page 3).

SSL/RADHOUNDX/I Radhound X/I Portable survey meter with internal compensated Geiger detector for ambient dose-equivalent H*(10) gamma measurement. Dose rate range: Background - 2 mSv/hr. Dose Rate, Source Finder, Integrator and Peak Reading modes. Rugged stainless steel housing for use in industrial environments. IP-65 rated for use in all weather conditions. Runs from 2 x 1.5V C-cell batteries. Does not connect to external probes. Includes basic test certificate. .

Radhound/Radhound X Probes

SSL/SS300 - SS300
SSL/SS315 - SS315
SSL/SS330 - SS330
SSL/SS335 - SS335
SSL/SS340 - SS340
SSL/SS404(AI) - SS404
SSL/SS404(Be) - SS404
SSL/500 - SS500
SSL/440B - SS440B
SSL/440BA - SS440 B-A
SSL/440BB - SS440 B-B
SSL/440BC - SS440 B-C
SSL/600A - SS600 A
SSL/600B - SS600 B
SSL/600AB - SS600 AB
SSL/700A - SS700
SSL/700B - SS700
SSL/700AB - SS700

Radhound/Radhound X Options

SSL/RADHOUND/CALC - Calibration of contamination probe
SSL/RADHOUND/CALD - Calibration of dose rate probe
SSL/RADHOUND/RS232 - RS-232 Port Wired serial port socket for connection to PC. Requires female-to-female straight through RS-232 cable.
SSL/RADHOUND/IR - Infrared Serial Connection
SSL/RADHOUND/B - Alarming Beacon Flashing beacon with green and red LEDs for a visual indication of alarm state (IP54).
SSL/RADHOUND/REL - Relay Cross-over relay contact for remote alarm.
SSL/RADHOUND/CAS - Instrument Case Small
SSL/RADHOUND/CAM - Instrument Case Medium

Probe Cables for Radhound X/E

SSL/RADHOUND/STCAB - Standard Straight Cable Straight probe cable, 1 metre.
SSL/RADHOUND/CLCAB - Coiled Loop Cable Coiled probe cable, retracted length of 0.3 metres.
SSL/RADHOUND/CUCAB - Custom Length Straight Cable

Kits (Special Bundle)

SSL/RADHOUND/LKIT - Low Energy Monitoring Kit. Includes: Radhound X/E, SS330 dose rate probe, SS404 AI contamination probe, standard probe cable, small travel case.
SSL/RADHOUND/GKIT - General Purpose Kit. Includes: Radhound X/E, SS330 dose rate probe, SS500 contamination probe, standard probe cable, small travel case.
SSL/RADHOUND/EKIT - Emergency Response Kit. Includes: Radhound X/E, SS330 dose rate probe, SS500 probe, SS600 AB alpha/beta probe, standard probe cable, medium travel case.
