Grant Instruments QBA Series Analogue Dry Block Heating Systems


The QBA series of analogue block heaters present a contemporary high quality solution at a cost-effective price for heating applications up to 100degC.

Designed for durability and easy to use, the range consists of two models with 1 or 2 removable/interchangeable blocks. A comprehensive range of accessory blocks for tubes of different diameters ensures maximum flexibility for different applications. The two-block system QBA2 also provides the option of blocks for accommodating standard microplates and microtube strips.

Robustly constructed in streamlined coolwall aluminium and chemical-resistant plastic, the units have a small footprint and low profile to optimise bench space. A sloping fascia provides for ease of set up. The easy-to-use analogue user interface is combined with a precision thermostat, setting resolution 2degC.

  Ambient + 5degC to 100degC operation
  Setting resolution 2degC
  Stability +/- 1.0degC, uniformity +/- 1.0degC
  Choice of 1 and 2 block systems
  Wide range of accessory blocks for different applications
  Block extraction tool included as standard, for easy and safe removal of blocks

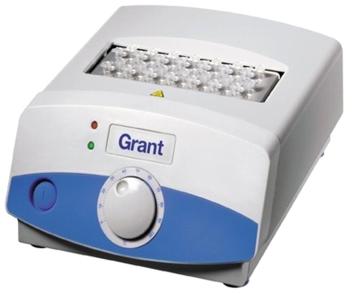

QBA1 - Analogue Dry Block Heating System (with single block)

The Grant Instruments QBA1 is a general purpose dry block heating system with analogue temperature control and a single removable/interchangeable block. Well engineered and easy to use, the QBA1 presents a high quality solution at a very cost-effective price.

  Heating range ambient + 5degC to 100degC
  Stability and uniformity +/- 1.0degC
  1-block system

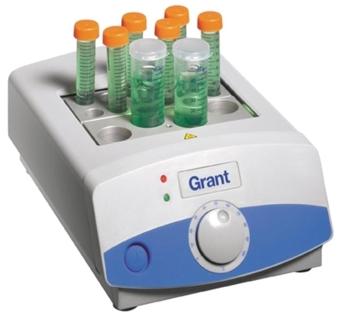

QBA2 - Analogue Dry Block Heating System (with two blocks)

The Grant Instruments QBA2 is a general purpose dry block heating system with two removable/interchangeable blocks for applications up to 100degC. Well engineered and easy to use, it presents a high quality solution at a very cost-effective price

  Heating range ambient + 5degC to 100degC
  Stability and uniformity +/- 1.0degC
  2-block system (model with 1 interchangeable block also available)
  Accessory options include microlitre blocks for microplates and strips


Data Sheet

Ordering Information


ANALOGUE DRY BLOCK HEATERS

Dry block heater analogue ambient +5 to 100C holds 1 interchangeable block QBA1
Dry block heater analogue ambient +5 to 100C holds 2 interchangeable blocks QBA2

Interchangeable blocks

Interchangeable block for QBA, QBD, QBH plain block QB-0
Interchangeable block for QBA, QBD, QBH for 24 x 10mm test tubes QB-10
Interchangeable block for QBA, QBD, QBH for 24 x 12mm test tubes QB-12
Interchangeable block for QBA, QBD, QBH for 12 x 13mm test tubes QB-13
Interchangeable block for QBA, QBD, QBH for 12 x 16mm test tubes QB-16
Interchangeable block for QBA, QBD, QBH extra deep block, for 10 x 17mm Falcon tubes, holes 75mm deep QB-17H
Interchangeable block for QBA, QBD, QBH for 12 x 18mm test tubes QB-18
Interchangeable block for QBA, QBD, QBH for 5 x 24mm tubes & disposable universal bottles QB-24
Interchangeable block for QBA, QBD, QBH for 4 x 29 mm 50ml non-skirted centrifuge tubes & glass universal bottles QB-50
Interchangeable block for QBA, QBD, QBH for 56 x 0.2ml microtubes or 7 x PCR strips QB-H
Interchangeable block for QBA, QBD, QBH for 24 x 0.5ml microcentrifuge tubes QB-E0
Interchangeable block for QBA, QBD, QBH for 24 x 1.5ml microcentrifuge tubes QB-E1
Interchangeable block for QBA, QBD, QBH for 24 x 2.0ml microcentrifuge tubes QB-E2
Interchangeable block for QBA, QBD, QBH for 24 x 11.13mm to 6.1mm dolphin nose tubes QB-DN
Interchangeable block for 96-well plates, complete with lid; for use only in QBA2, QBD2 QDP-FL
Interchangeable block for 0.2ml tubes, strips, 96-well plates; for use only in QBA2, QBD2 QDP-H

External probes

External probe for QBD and QBH QBEP
External probe for QBD and QBH short-form QBEP-WM

Safety cover

Safety cover transparent polycarbonate for QBA1, QDB1 QBL1
Safety cover transparent polycarbonate for QBA2, QBD2, QBH2 QBL2
Safety cover transparent polycarbonate for QBD4 QBL4



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
