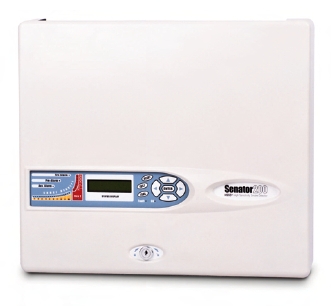

Kidde Senator 200 High Sensitivity Smoke Detector



  High sensitivity provided by laser based forward light scatter for reliable early warning.
  Unique ClassiFire-3D® Perceptive Artificial Intelligence System.
  Laser Dust Discrimination (LDD) with a patented dust management and separator system.
  4 sampling pipes up to 250m maximum total length.
  RS485 communications built in as standard for networking and remote communications.
  LPCB approved sampling fo up to 100 sampling holes.

Senator 200 is a highly sophisticated ‘next generation’ of High Sensitivity Aspirating Smoke Detection product that has been designed to ensure that installation and commissioning is as simple as possible, while optimizing performance.

Senator 200 has unmatched sensitivity potential, providing the earliest warning of incipient fire with mimimum rate of nuisance alarms.

ClassiFire-3D® is the most comprehensive intelligence found in a smoke detection system to date and ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup.

Senator 200 can be provided as a standard detector or as a detector c/w command module, the command module provides central monitoring and display of detectors on a SenseNET network.

Volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems. Senator 200 is also provided with 3 pairs of remote control input terminals which can be configured for a number of functions.

Senator 200 can be programmed through the front panel, via a command module or PC.

Applications

  Data Storage Units
  Computer Rooms
  Plant Rooms
  Air Conditioning Units
  Equipment Racks
  Prison Cells
  Air Ducts
  Heritage Properties
  Motor Rooms

Kidde Senator 200 High Sensitivity Smoke Detector

Options Available

  Addressable Protocol Interface Cards APIC™ available for most popular industry signalling protocols.
  Command Module available for central monitoring and display.
  SenseNet compatible - up to 127 detectors per loop.
  Remote Display units available.
  Lower cost mimimum display option is available.
  Approved/listed by most major international fire protection certification agencies


Datasheet

Ordering Information


9-30621-KID
Senator 200
Four pipe aspirating smoke detector with a sensitivity scale ranging 0.003 – 25% obs/m. Classifire 3D® Artificial Intelligence allows it to automatically adjust sensitivity with no external input. Laser Dust Discrimination (LDDTM) makes this product suitable for a wide range of environments. LCD and LED status indicators, unit is fully programmable via the front membrane, four alarm levels with relay outputs, 3 x programmable inputs. SenseNET network ready. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30620-KID
Senator 200 with Command Module
As per part number 30621 with command module functionality included. The command module functionality provides central control for all detectors connected on a network. Large LCD provides detailed status information. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

Aspirating Smoke Detection System Accessories

9-30624-KID
Senator Command Module
Provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command module allows global programming of all detector functions simultaneously.Large LCD and LED status indications. Requires external 24vdc supply.Dimensions: 425w x 370h x 115d

9-30627-KID
Senator 19” rack command module
Command module as per part no. 30624. Constructed in a compact stainless steel enclosure enabling mounting in a 3U high 19” rack mount cabinet.

9-30709-KID
Senator Command Module – steel enclosure
As per part number 30624-KID with a steel front cover for industrial type applications. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30802-KID
Senator Remote Display Unit (RDU)
The RDU connects to the Senator range of detectors using the RS485 data bus and mimics the LED status indications of the detector. The RDU monitors the status of a single detector. More than one RDU can be allocated to a single detector. The RDU can be mounted in either a single wall mounted enclosure or a 3U high 19” rack enclosure. Requires a 24vdc supply.

9-30803
RDU Relay board
This is an optional relay board which can be used with the Senator RDU to provide Volt Free Changeover Contacts for signalling to other equipment. Five relays are provided for Fire 1, Fire 2, Pre-alarm, Aux Alarm and Fault (energised).

9-30430
APIC card – Apollo protocol
Can be fitted internally to any Senator detector unit or Command Module allowing them to be connected to an Apollo protocol addressable loop. A single APIC may be used in Multi Address mode when installed inside a command module for signalling up to 127 detectors onto the addressable loop reducing costs on larger systems.

9-30720
Nano communication card
Optional card for installation in the Senator Nano Aspirating Detector. The communications card allows the Senator Nano to be connected to a PC or SenseNET network.

9-30436
Relay/Input card
The Relay/Input card can be fitted into the Senator 25 and 100 detectors to provide an additional five relay outputs for signalling to other equipment. Three inputs are provided on the card that can be programmed for remote reset, isolate, classifire override or PSU fault monitoring.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
