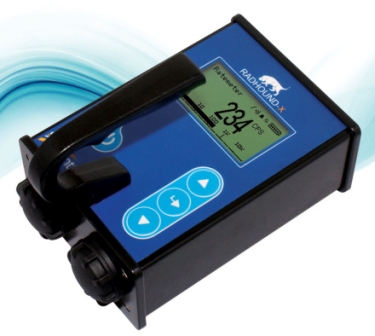

Southern Scientific Radhound X/E Hand Held Advanced Digital Radiation Monitor


The Radhound X/E is a hand held advanced digital radiation monitor made by Southern Scientific with a range of probe options for all radiation protection requirements as well as contamination monitoring.

An advanced general purpose digital hand held radiation monitor the Radhound X/E is suitable for a wide range of probes.

This instrument packed with features boasts of unique characteristics, the ability to switch between probes via the menu, a dose rate probe and a contamination probe configured for use with one instrument. This flexibility allows for any standard probe to be used (300-1200V).

Radhound X/E is capable of measuring dose rate, CPS, CPM, Bq/cm2 with alpha and beta discrimination. The menu on the instruments allows adjustment of high voltage, thresholds, over-range protection and dead time.

Great care has been taken to ensure the instruments are very easy to operate. The menu on the Radhound X/E easily can be locked by the user to ensure only basic options are available, providing greater security and protection against accidental setting changes.

Multiple probe library/configuration

Traditional and operating as a single probe, the Radhound X/E instrument allows the user to switch quickly between alternative probe setups. (The user when plugged is instructed to the correct probe before the application of the new settings thereby protecting against use of incorrect settings or the possibility of over voltage).

Alarm

With adjustable alarm threshold the Radhound X/E can set alarms additionally separating alpha and beta. Loud and clear, the sounder is suitable for use in many different environments. There is a symbol that flashes on the display when in alarm.

Scaler Timer

The Radhound X/E having a scaler time mode allows the integration of count for a preset time (or time to a preset count). The dose rate mode additionally can indicate dose to time.

Self-Test

The Radhound X/E when turned on automatically checks its health. The battery level, high voltage, sounders and the keyboard as well are checked.

Southern Scientific Radhound X/E Hand Held Advanced Digital Radiation Monitor

Specifications

  Main modes of operation: Count (or dose rate), integrate/scaler timer, histogram (count rate graph), Peak value & Menu gives control of system parameters and multiple probe library
  Display: Large backlit LCD, 70 x 40 mm
  Automatic backlight movement sensor - when instrument is picked up, the backlight comes on
  Displayed units: CPS, CPM, Sv/hr, mSv/hr, Sv/hr, (R/hr, mR/hr R/hr) Bq/cm2
  Response time: 0.5 second response
  Adjustable averaging time 5, 10, 15 seconds
  Integration time adjustable up to 24 hours
  Operational parameters: High voltage adjustable from 300-1200V, User defined. Up to 5 probes with adjustment of HV, gain, threshold, dead time, over-range, probe name, Adjustable alarm levels & MHV connector (others available on request)
  Size: 165 x 115 x 59 mm excluding handle
  Impact resistant, waterproof for IP65
  Weight typically <1.3 kg
  Operating temperature -10C to +50C
  Storage temperature -25C to +60C
  Power: On screen battery status indication, 2 x 1.5V C-cell or optional lithium ion rechargeable & Battery life typically >40 hrs continuous use

Options

  Infra-red serial connection
  RS-232 connection
  Internal lithium ion rechargeable cell
  Instrument case
  External Probes: SS300/315/330/335 SS440 SS404A, SS404B SS500/600/700


Data Sheet
Isotope Probe Look-up Table
Probe Selection Guide

Ordering Information


Radhound Monitors

SSL/RADHOUND Radhound Bench ratemeter for use with full range of external probes, supplied separately. Rate, Source Finder and Integrator modes. Adjustable tilt stand, for ease of viewing at all angles. Includes rechargeable lithium ion battery and mains charger. Features hardwired, coiled probe cable.

SSL/RADHOUNDX/E Radhound X/E Portable ratemeter with connector for use with full range of external probes, supplied separately. Rate, Source Finder, Integrator and Peak Reading modes. Suitable for use with multiple probes save calibration settings of up to 5 different probes and switch between them in the instrument menu. Rugged stainless steel housing for use in industrial environments. Runs from 2 x 1.5V C-cell batteries. Requires a probe cable, supplied separately (see page 3).

SSL/RADHOUNDX/I Radhound X/I Portable survey meter with internal compensated Geiger detector for ambient dose-equivalent H*(10) gamma measurement. Dose rate range: Background - 2 mSv/hr. Dose Rate, Source Finder, Integrator and Peak Reading modes. Rugged stainless steel housing for use in industrial environments. IP-65 rated for use in all weather conditions. Runs from 2 x 1.5V C-cell batteries. Does not connect to external probes. Includes basic test certificate. .

Radhound/Radhound X Probes

SSL/SS300 - SS300
SSL/SS315 - SS315
SSL/SS330 - SS330
SSL/SS335 - SS335
SSL/SS340 - SS340
SSL/SS404(AI) - SS404
SSL/SS404(Be) - SS404
SSL/500 - SS500
SSL/440B - SS440B
SSL/440BA - SS440 B-A
SSL/440BB - SS440 B-B
SSL/440BC - SS440 B-C
SSL/600A - SS600 A
SSL/600B - SS600 B
SSL/600AB - SS600 AB
SSL/700A - SS700
SSL/700B - SS700
SSL/700AB - SS700

Radhound/Radhound X Options

SSL/RADHOUND/CALC - Calibration of contamination probe
SSL/RADHOUND/CALD - Calibration of dose rate probe
SSL/RADHOUND/RS232 - RS-232 Port Wired serial port socket for connection to PC. Requires female-to-female straight through RS-232 cable.
SSL/RADHOUND/IR - Infrared Serial Connection
SSL/RADHOUND/B - Alarming Beacon Flashing beacon with green and red LEDs for a visual indication of alarm state (IP54).
SSL/RADHOUND/REL - Relay Cross-over relay contact for remote alarm.
SSL/RADHOUND/CAS - Instrument Case Small
SSL/RADHOUND/CAM - Instrument Case Medium

Probe Cables for Radhound X/E

SSL/RADHOUND/STCAB - Standard Straight Cable Straight probe cable, 1 metre.
SSL/RADHOUND/CLCAB - Coiled Loop Cable Coiled probe cable, retracted length of 0.3 metres.
SSL/RADHOUND/CUCAB - Custom Length Straight Cable

Kits (Special Bundle)

SSL/RADHOUND/LKIT - Low Energy Monitoring Kit. Includes: Radhound X/E, SS330 dose rate probe, SS404 AI contamination probe, standard probe cable, small travel case.
SSL/RADHOUND/GKIT - General Purpose Kit. Includes: Radhound X/E, SS330 dose rate probe, SS500 contamination probe, standard probe cable, small travel case.
SSL/RADHOUND/EKIT - Emergency Response Kit. Includes: Radhound X/E, SS330 dose rate probe, SS500 probe, SS600 AB alpha/beta probe, standard probe cable, medium travel case.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
