Zareba Sensepoint XRL

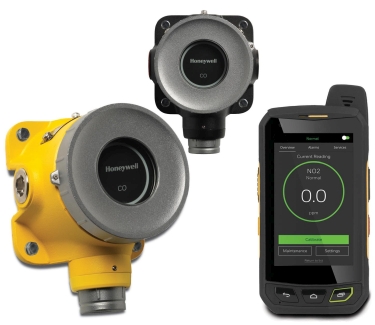

Sensepoint XRL is a fixed point gas detector with Bluetooth that allows the user to connect the gas detector to a smartphone or tablet running the Sensepoint gas detector app. Sensepoint XRL is available as a flammable gas detector for the detection of potentially explosive gases, or as a toxic gas detector for the detection of a range of toxic gas hazards commonly found in industrial applications.

Winner of both iF and Red Dot design awards, Sensepoint XRL is designed with simple and quick installation in mind. And for initial calibration, all you need is our Sensepoint App on your smartphone and a cylinder of calibration gas - no need for walkie-talkie guidance with the control room. Use the Sensepoint App to create a profile for the detector, choose alarm set points, run test procedures and automatically generate a commissioning report, which you can send from your phone to other stakeholders or store for easy access in a safety inspection. No need for paperwork.

Sensepoint XRL's smartphone-based experience significantly reduces the time you spend on gas detector maintenance. And when doing maintenance checks, our Sensepoint App puts diagnostic information at your fingertips.

It has bright indicator lights visible from a distance, making it easy to locate a detector requiring maintenance. And the Bluetooth connection is non-intrusive so there is no need for a hot work permit.

You can also save valuable time with easy reporting on the Sensepoint App. Whether you need a maintenance report for a certain detector or a gas history for a safety audit, just select the right report on the app and send it to other parties - or store it for easy recall. For a complete gas leak detection system, Sensepoint XRL has the perfect partner in Touchpoint Plus, a configurable, easy-to-use controller for up to sixteen channels of gas detection.


Features & Benefits

  Manage installation, commissioning and maintenance from the gas detector app on your smartphone or tablet
  Award-winning design
  Robust aluminum housing
  Worldwide hazardous area approvals
  Compatible with Touchpoint Plus and other industry-standard controllers

Quick Specs

  mA loop or Modbus RTU output
  Multi-colour LED status indicator
  Operating temperature range -40°C to +65°C, IP66, Type 4X
  Choice of toxic, Oxygen or flammable sensors


Data Sheet
Quick Start Guide
Manual

Ordering Information


Sensepoint XRL, Bluetooth, Charcoal Grey, 4-20mA, ATEX/IECEx

SPLIO1BAXCMAZZ SPXRL-BT-ATEX-O2 25.0%VOL-mA-CHR
SPLIC1BAXCMAZZ SPXRL-BT-ATEX-CO 300ppm-mA-CHR
SPLIH1BAXCMAZZ SPXRL-BT-ATEX-H2S 50ppm-mA-CHR
SPLIH2BAXCMAZZ SPXRL-BT-ATEX-H2S 100ppm-mA-CHR
SPLIG1BAXCMAZZ SPXRL-BT-ATEX-H2 1000ppm-mA-CHR
SPLIN1BAXCMAZZ SPXRL-BT-ATEX-NO2 20.0ppm-mA-CHR
SPLIF6BAXCMAZZ SPXRL-BT-ATEX-CH4 100%LEL-mA-CHR

Sensepoint XRL, Bluetooth, Yellow, 4-20mA, ATEX/IECEx

SPLIO1BAXYMAZZ SPXRL-BT-ATEX-O2 25.0%VOL-mA-YEL
SPLIC1BAXYMAZZ SPXRL-BT-ATEX-CO 300ppm-mA-YEL
SPLIH1BAXYMAZZ SPXRL-BT-ATEX-H2S 50ppm-mA-YEL
SPLIH2BAXYMAZZ SPXRL-BT-ATEX-H2S 100ppm-mA-YEL
SPLIG1BAXYMAZZ SPXRL-BT-ATEX-H2 1000ppm-mA-YEL
SPLIN1BAXYMAZZ SPXRL-BT-ATEX-NO2 20.0ppm-mA-YEL
SPLIF6BAXYMAZZ SPXRL-BT-ATEX-CH4 100%LEL-mA-YEL

Sensepoint XRL, Bluetooth, Charcoal Grey, Modbus, ATEX/IECEx

SPLIO1BMXCMAZZ SPXRL-BT-ATEX-O2 25.0%VOL-Modbus-CHR
SPLIC1BMXCMAZZ SPXRL-BT-ATEX-CO 300ppm-Modbus-CHR
SPLIH1BMXCMAZZ SPXRL-BT-ATEX-H2S 50ppm-Modbus-CHR
SPLIH2BMXCMAZZ SPXRL-BT-ATEX-H2S 100ppm-Modbus-CHR
SPLIG1BMXCMAZZ SPXRL-BT-ATEX-H2 1000ppm-Modbus-CHR
SPLIN1BMXCMAZZ SPXRL-BT-ATEX-NO2 20.0ppm-Modbus-CHR
SPLIF6BMXCMAZZ SPXRL-BT-ATEX-CH4 100%LEL-Modbus-CHR

Sensepoint XRL, Bluetooth, Yellow, Modbus, ATEX/IECEx

SPLIO1BMXYMAZZ SPXRL-BT-ATEX-O2 25.0%VOL-Modbus-YEL
SPLIC1BMXYMAZZ SPXRL-BT-ATEX-CO 300ppm-Modbus-YEL
SPLIH1BMXYMAZZ SPXRL-BT-ATEX-H2S 50ppm-Modbus-YEL
SPLIH2BMXYMAZZ SPXRL-BT-ATEX-H2S 100ppm-Modbus-YEL
SPLIG1BMXYMAZZ SPXRL-BT-ATEX-H2 1000ppm-Modbus-YEL
SPLIN1BMXYMAZZ SPXRL-BT-ATEX-NO2 20.0ppm-Modbus-YEL
SPLIF6BMXYMAZZ SPXRL-BT-ATEX-CH4 100%LEL-Modbus-YEL

Sensepoint XRL, Bluetooth, Charcoal Grey, 4-20mA, cULus

SPLIO1BAXCNUZZ SPXRL-BT-cULus-O2 25.0%VOL-mA-CHR
SPLIC1BAXCNUZZ SPXRL-BT-cULus-CO 300ppm-mA-CHR
SPLIH1BAXCNUZZ SPXRL-BT-cULus-H2S 50ppm-mA-CHR
SPLIH2BAXCNUZZ SPXRL-BT-cULus-H2S 100ppm-mA-CHR
SPLIG1BAXCNUZZ SPXRL-BT-cULus-H2 1000ppm-mA-CHR
SPLIN1BAXCNUZZ SPXRL-BT-cULus-NO2 20.0ppm-mA-CHR
SPLIF6BAXCNUZZ SPXRL-BT-cULus-CH4 100%LEL-mA-CHR

Sensepoint XRL, Bluetooth, Yellow, 4-20mA, cULus

SPLIO1BAXYNUZZ SPXRL-BT-cULus-O2 25.0%VOL-mA-YEL
SPLIC1BAXYNUZZ SPXRL-BT-cULus-CO 300ppm-mA-YEL
SPLIH1BAXYNUZZ SPXRL-BT-cULus-H2S 50ppm-mA-YEL
SPLIH2BAXYNUZZ SPXRL-BT-cULus-H2S 100ppm-mA-YEL
SPLIG1BAXYNUZZ SPXRL-BT-cULus-H2 1000ppm-mA-YEL
SPLIN1BAXYNUZZ SPXRL-BT-cULus-NO2 20.0ppm-mA-YEL
SPLIF6BAXYNUZZ SPXRL-BT-cULus-CH4 100%LEL-mA-YEL

Sensepoint XRL, Bluetooth, Charcoal Grey, Modbus, cULus

SPLIO1BMXCNUZZ SPXRL-BT-cULus-O2 25.0%VOL-Modbus-CHR
SPLIC1BMXCNUZZ SPXRL-BT-cULus-CO 300ppm-Modbus-CHR
SPLIH1BMXCNUZZ SPXRL-BT-cULus-H2S 50ppm-Modbus-CHR
SPLIH2BMXCNUZZ SPXRL-BT-cULus-H2S 100ppm-Modbus-CHR
SPLIG1BMXCNUZZ SPXRL-BT-cULus-H2 1000ppm-Modbus-CHR
SPLIN1BMXCNUZZ SPXRL-BT-cULus-NO2 20.0ppm-Modbus-CHR
SPLIF6BMXCNUZZ SPXRL-BT-cULus-CH4 100%LEL-Modbus-CHR

Sensepoint XRL, Bluetooth, Yellow, Modbus, cULus

SPLIO1BMXYNUZZ SPXRL-BT-cULus-O2 25.0%VOL-Modbus-YEL
SPLIC1BMXYNUZZ SPXRL-BT-cULus-CO 300ppm-Modbus-YEL
SPLIH1BMXYNUZZ SPXRL-BT-cULus-H2S 50ppm-Modbus-YEL
SPLIH2BMXYNUZZ SPXRL-BT-cULus-H2S 100ppm-Modbus-YEL
SPLIG1BMXYNUZZ SPXRL-BT-cULus-H2 1000ppm-Modbus-YEL
SPLIN1BMXYNUZZ SPXRL-BT-cULus-NO2 20.0ppm-Modbus-YEL
SPLIF6BMXYNUZZ SPXRL-BT-cULus-CH4 100%LEL-Modbus-YEL

Accessories

SPXRLCAL SPXRL-Calibration Cap
SPXRLFLW SPXRL-Flow Housing
SPXRLDMK SPXRL-Duct Mount Kit
2308B0923 Pole Mount Bracket Kit
SPXCDWP Weather Protection Cap
SPXCDCC Collecting Cone for use with lighter than air gases, Order with SPXCDWP

Consumables (Spare Sensors)

SPXRLMAO1 SPXRL-Module Set-mA - O2
SPXRLMAC1 SPXRL-Module Set-mA - CO
SPXRLMAH1 SPXRL-Module Set-mA - H2S Low Range
SPXRLMAH2 SPXRL-Module Set-mA - H2S High Range
SPXRLMAG1 SPXRL-Module Set-mA - H2
SPXRLMAN1 SPXRL-Module Set-mA - NO2
SPXRLMAF1 SPXRL-Module Set-mA - Flammable Cat
SPXRLMMO2 SPXRL-Module Set-Modbus - O2
SPXRLMMC1 SPXRL-Module Set-Modbus - CO
SPXRLMMH1 SPXRL-Module Set-Modbus - H2S Low Range
SPXRLMMH2 SPXRL-Module Set-Modbus - H2S High Range
SPXRLMMG1 SPXRL-Module Set-Modbus - H2
SPXRLMMN1 SPXRL-Module Set-Modbus - NO2
SPXRLMMF1 SPXRL-Module Set-Modbus - Flammable Cat
SPXZZRLF6SS SPXRL-Replacement Sensor-Cat
SPXCLZZO1SS Sensepoint XCL/XRL Replacement Sensor - O2
SPXCLRLC1SS Sensepoint XCL/XRL Replacement Sensor - CO
SPXCLRLH1SS Sensepoint XCL/XRL Replacement Sensor - H2S (Low and High Range)
SPXCLRLG1SS Sensepoint XCL/XRL Replacement Sensor - H2
SPXCLRLN1SS Sensepoint XCL/XRL Replacement Sensor - NO2

Spares (Miscellaneous)

SPXRLSK1 SPXRL-Service Kit 2
SPXRLSCP SPXRL-Sensor Cover Spare
SPXRLSCC SPXRL-Sensor Trim Ring Spare-CHR
SPXRLSCY SPXRL-Sensor Trim Ring Spare-YEL
SPXRLCOV SPXRL-Top Cover Spare
SPXRLSPN SPXRL-Stopping Plug-3/4" NPT
SPXRLSPM SPXRL-Stopping Plug-M20



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
