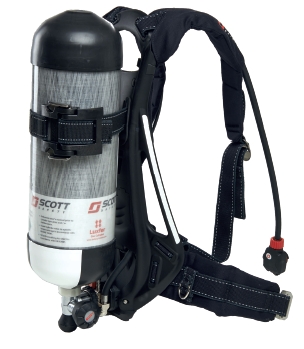

3M ProPak-F Firefighting Breathing Apparatus



  EN137:2006 Type 2, MED Approved Breathing Apparatus
  Designed for use by the Fire Service or the Oil & Gas market
  Rigid backframe construction
  Easily removable pneumatics
  Simple to service and maintain

For use by the fire service in the oil and gas fire fighting market, 3M have produced the ProPak-F Firefighting Breathing Apparatus.

As a testement to the quality of the 3M ProPak range, all ProPak breathing apparatus has been approved to EN137:2006 Type 2, incorporating the stringent Full Flame Engulfment Test, and to the 9th amendment of the MED which gives the 3M ProPak the latest approval for the Marine industry.

MAJOR COMPONENTS

Compact positive pressure demand valve featuring servo-assisted, tilting diaphragm mechanism with low inspiratory resistance and responsive dynamic performance, automatic first breath actuation and hands free bypass facility.

REDUCING VALVE

First stage pressure reducing valve featuring non-adjustable, spring loaded piston mechanism and outlet supply protected by pressure relief valve.

HOSES

  Stainless steel swivel hose fittings
  Medium pressure hose
  High pressure hose
  Medium working pressure 16 bar
  Minimum burst pressure 80 bar
  Maximum working pressure 450 bar
  Minimum burst pressure 800 bar

Specifications


Brochure
Specifications
Technical Datasheet


PRESSURE INDICATOR & WARNING WHISTLE

Bourdon tube type dial indicator
Heat and Impact resistant polycarbonate lens

COMMUNICATIONS

Designed to be used with 3M's range of positive pressure full facemasks, the Sabrecom2 is a radio communication interface.

The Sabrecom2 is approved to EN136 class and meets the stringent flame and radiant heat test requirements. The Sabrecom2 is also fully integrated and ready to use.

OPTIONS

The 3M ProPak-f can be specified in many configurations including Duo, Split Demand Valve Coupling (SDC), Y-Piece (Y2C) and attachments for Airline, which can be used for Rescue Second Man and Decontamination. Cylinder quick connect and fast fill options are also available.

Ordering Information


2027182 PROPAK-f (V2) ProPak-f self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate with cylinder band and fully adjustable padded body harness.
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector.
Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus features lumbar padding. Webbing contains reflective thread.
Apparatus accepts full range of Scott breathing apparatus cylinders from 4.7 to 9 litres capacity, 200 or 300 bar.*
Apparatus is CE Marked to EN137:2006 Type 2 and MED approved
Apparatus supplied less facemask, please order desired mask separately.
*Please note to maintain the cylinder valve handwheel on the normal right hand side of the SCBA please order the cylinders fitted with the right angled valve. These cylinders have the suffix -RA
Variants of sets are available that will accept the 379 bar cylinder technology available from 3M.

2027183 PROPAK-f-AC (V2) ProPak-f fitted with Airline attachment*.

2027184 PROPAK-f-SDC (V2) ProPak-f fitted with Split demand valve

2027186 PROPAK-f-SDC-AC (V2) ProPak-f fitted with Split demand valve and Airline attachment*.

2027185 PROPAK-f-Y2C (V2) ProPak-f fitted with Y-piece (2 CEN socket) in demand valve hose

* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well as Airline.

-QC Cylinder Quick Connect on reducer. Please add suffix -QC to required part number to receive a set fited with the Quick connect system. Please note cylinder adaptor 2020714 also required - sold seperately

-DUO ProPak-f with extended cylinder band to allow single or two cylinder use. (Man-200 or Man-300 also required)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
