Maximum operating temperatures of 1700 DegC & 1800 DegC
  Accepts a worktube of 90mm outside diameter
  Heated lengths of 300 or 600mm

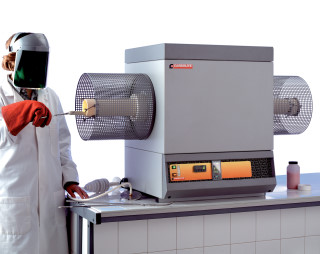

  These models utilise molybdenum Disilicide heating elements, arranged vertically around a separate ceramic worktube to ensure excellent thermal uniformity
  Available for horizontal use only
  Can be adapted to allow a non-oxidising atmosphere or vacuum, by fitting a longer length worktube and end seals
  Applications in General Industry include sintering alumina, smelt trials and checking Al2O3 content in alumina
  Applications in the ceramics industry include disintegration, testing and analysis of cement samples, refractory porosity tests, long term high temperature temperature tests and firing & sintering of ceramic samples
  Applications in the semi-conductor industry include annealing silicon, silicon carbide & nitride samples and solid state synthesis
  Applications in materials research include testing of novel materials under strict temperature and varying atmosphere conditions
  Applications in instrumentation include testing of temperature sensors such as thermocouples and PT100's, and may require enhanced thermal uniformity

Models in this range:

CTF 17/-/300
CTF 17/-/600
CTF 18/-/300
CTF 18/-/600
