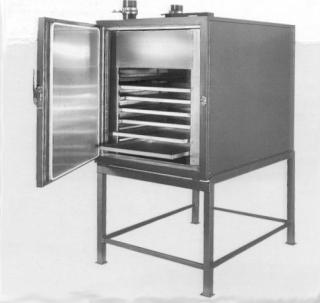

Carbolite Coal Drying Ovens (CDLT & CDHT)


  A range of two coal drying ovens suitable for use in carrying out the tests described in American and British Standards;
  Model CDLT is suitable for carrying out the tests described in BS1017 parts 1 and 2 and also ASTM D2013 and D3302;
  Model CDHT is suitable for carrying out the tests described in BS1016 parts 1 and 2 and also ASTM D2961;
  Air is circulated around the oven by two centrifugal fans; ducts and airguides ensure that the airflow is horizontal across the chamber, with air being directed over each shelf level;
  The chamber is fitted with 6 pairs of shelf runners on 90mm centres; twelve aluminium trays are supplied. The trays slide directly on the shelf runners. The oven accepts two shelves per level to give a total tray area of 4.32 square metres;
  Air inlet and outlet vents are provided so that the warm moist air may be ventilated to atmosphere and replenished with fresh air; the incoming fresh air is preheated before it enters the work chamber;
  Mineral insulated metal sheathed elements give a long and reliable service life;
  A single side hinged door at the front with lever clamp door handle and silicone rubber door seals provides access to the chamber.


Specifications


  Normal working temperature: CDLT - ambient to 50°C/CDHT - ambient +10°C to 200°C
  Internal dimensions: 610mm wide x 1220mm deep x 610mm high
  Approximate exteral dimensions: 1720mm high x 1150mm wide x 1400mm deep
  Power requirements: CDLT : Total heating power = 9.0kW/CDHT : Total heating power = 15kW

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
