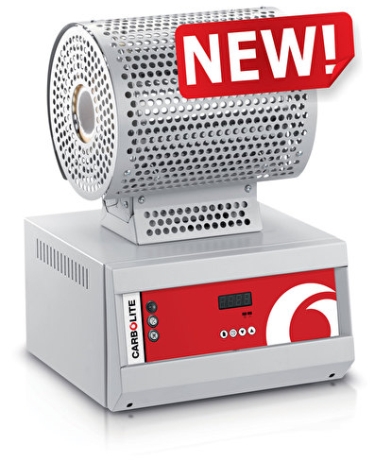

Carbolite E-Series Compact Modular Tube Furnace (EHA, EVA, EST and EVT)


The entire range of tube furnaces within the new E-Series by Carbolite use free radiating wire elements embedded within the insulation of the furnace body. This type of design is hugely helpful and flexible. The use of tube adapters the same furnace can be used with a variety of tube diameters.

The E-Series can be configured as horizontal or vertical, split and non-split.

A hinged furnace body on the EST and EVT models, split into two halves along its length, ensures that the exchange of work tubes is simpler. This also allows the furnace to be used with reactors or work tubes where end flanges would make insertion into a non-split furnace hard.

An integral work tube is not includes in the E-Series range of tube furnaces, so one must be selected as an additional item. The type of application influences the work tube length, such as whether the application is for use with modified atmosphere or vacuum. Damage or contamination can be avoided with this use of a separate work tube.

Standard Features

  1200 degC maximum operating temperature
  150, 300, 450 or 600 mm heated lengths
  Accepts work tubes with outer diameters up to 60 mm
  Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times
  Models EST, EVT: Furnace splits into two halves and accommodates tubes or samples fixed into a test rig
  Models EHA, EST: Horizontal configuration
  Models EVA, EVT: Vertical configuration (can also be used horizontally)
  Models EVA, EVT: Control module with 2 metre conduit to furnace
  Carbolite 301 digital PID controller with single ramp to setpoint, digital display and process timer
  Outer mesh guard ensures operator safety

Options (specify these at time of order)

  EVA models: Angle adjustment option allows horizontal and multi-angle configuration
  A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  Wide choice of tube diameters and materials is available: eg quartz, ceramic, metal
  Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  Insulation plugs, gas tight end seals and vacuum connections available


Models

  EHA 12/150
  EHA 12/300
  EHA 12/450
  EHA 12/600
  EVA 12/150
  EVA 12/300
  EVA 12/450
  EVA 12/600
  EST 12/150
  EST 12/300
  EST 12/450
  EST 12/600
  EVT 12/150
  EVT 12/300
  EVT 12/450
  EVT 12/600


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
