Carbolite VST 1200 DegC Vertical Split Tube Furnaces


  Maximum operating temperature 1200 DegC
  Tube diameters up to 110mm
  Heated lengths of 200, 300, 400, 600 and 900mm
  Resistance wire heating elements are semi-embedded in rigidised low thermal mass insulation, a separate ceramic worktube is optional
  The split design offers the flexibility to wrap the furnace around a fixed item, such as a pipe with flanges which is too large to pass through a solid tube furnace
  Removable half tube adapters allow rapid changes for different size worktubes or workpieces up to 110mm outer diameter

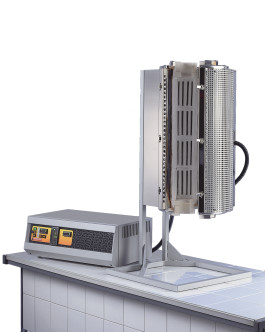

  Built on the vertical stand pictured left, with a separate control box
  Applications in general industry include, heat treatment of workpieces with unusual dimensions
  Applications in material testing include, inclusion with tensile testing machine
  Applications in materials research include testing of novel materials

Models in this range:

VST 12/200
VST 12/300
VST 12/400
VST 12/600
VST 12/900
VST 17/250



Specifications
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
