HomeLaboratoryFurnaces, Ovens & Incubators › Nabertherm


Top Loaders, square, heated from 5 sides

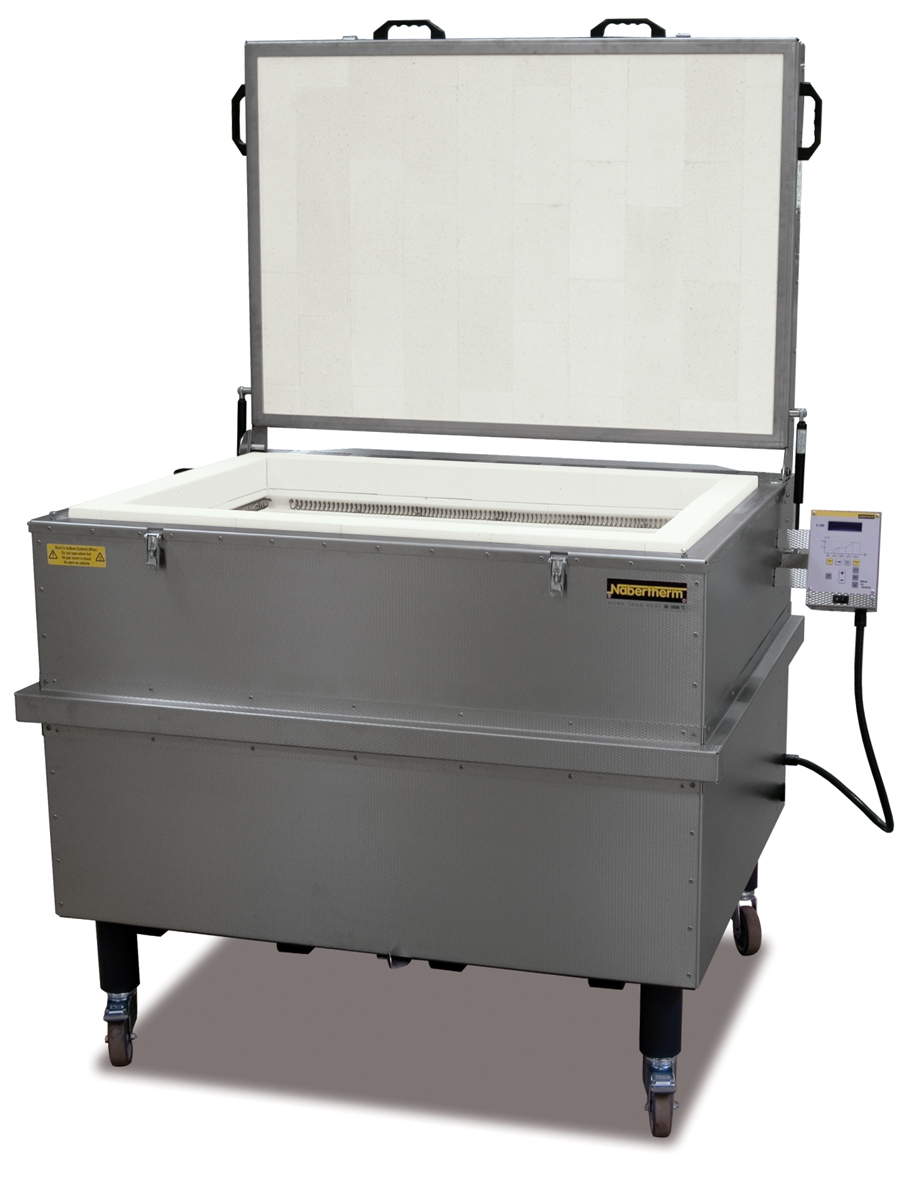

Top loaders HO 70/L - HO 300

Firing chamber with heating from 5 sides

The square top loaders from Nabertherm are extremely rugged. Heated from four walls and the floor with the elements protected in grooves.

Top quality:

  •   Heating from all sides and bottom, elements embedded in grooves for protection
  •   Long-lasting, heavy-gauge heating elements
  •   Solid-state power control relays for silent operation
  •   Fast power switching for precise temperature distribution
  •   Long life Platinum-Rhodium Type “S” thermocouple standard
  •   Lid safety switch shuts down power to the elements when the lid is opened
  •   Multi-layer lining with light weight insulation bricks and microporus insulation for a cooler shell and low power consumption
  •   Chamfered brick edges minimize kiln dirt contamination
  •   Robust, rust resistant, low-maintenance stainless steel housing
  •   Lid with adjustable quick-release lock and padlock hasp
  •   Wear-resistant lid sealing (brick surface on both ends)
  •   Gas-spring supports for easy lid opening and closing
  •   Castors for easy transport of the kiln without raising, lockable (HO 70 - HO 100)
  •   Delivery includes ceramic shelve
  •   Infinitely adjustable air inlet opening in the kiln bottom for improved ventilation and reduced cooling time.
  •   Air outlet on the side of the kiln with a bleed air collar, 80 mm diameter

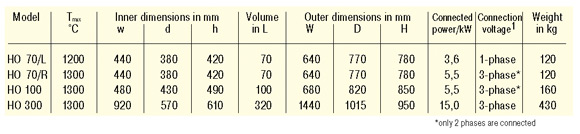

Models in this range include the HO 70 /L, HO 70 /R, HO 100 and HO 300.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
