Controllers and Software

Controller B 130 Controller C 280 Controller C 290

Nabertherm has many years of experience in design and construction of standardized and customer-friendly control units. The controllers distinguish themselves by a very high operating convenience and provide extensive basic functions from the basic model on.

Standard Controllers

Our wide range of standard controllers already covers many customer requirements. Adapted to the specific furnace model the controller reliably monitors your heat treatment process. The standard controllers are developed and produced within the Nabertherm Group. When designing the controllers, easy use is our top-priority. Each of the units are tailored to the typical applications for a specific furnace model. From a simple controller with a single adjustable temperature up to a control unit with freely programmable parameters, storable programs and interface to a computer - we can meet your requirements.

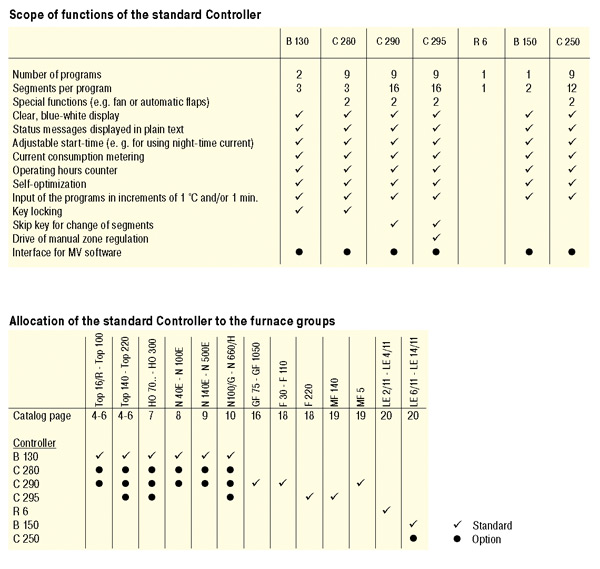

Scope of functions of the standard Controller

Interface/Software MV1.3

For easier programming and documentation of your controllers, we offer our Controltherm Software. This system lets you connect up to 16 furnaces to a PC. From here you may edit and download programs, monitor firing progress and store historical data for all your firings. Data may be exported to Excel for easier manipulation.

Supply voltages for Nabertherm furnaces

1phase: All furnaces are available for 110 V - 240 V, 50 or 60 Hz.3phase: All furnaces are available for 200 V - 240 V and/or 380 V - 480 V, 50 or 60 Hz.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
