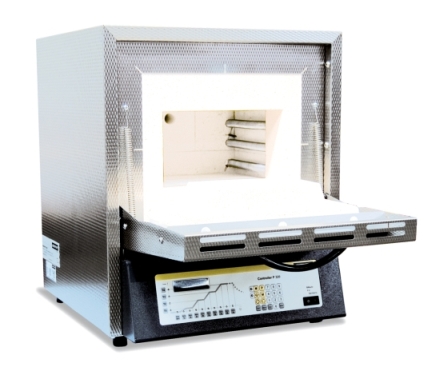

Muffle Furnaces L 3/13 - LT 15/13 with Brick Insulation and Flap Door or Lift Door

Heating elements embedded in grooves radiating freely into the furnace chamber give these models particularly short heating times. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These models thus represent an interesting alternative to the familiar L(T) 3/11 models, when you need particularly short heating times or a higher application temperature.

  •   Tmax 1300 °C
  •   Heating elements freely radiating, embedded in grooves for high heating speeds
  •   Multilayer insulation with robust lightweight refractory bricks in the furnace chamber
  •   Casing made of sheets of textured stainless steel (non-rusting design)
  •   Double-walled casing for low external temperatures and stability
  •   Optional fold-down door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
  •   Adjustable air inlet in the furnace door
  •   Exhaust air outlet in rear wall of furnace
  •   Silent solid-state power control relay

Additional Equipment

  •   Vent, vent with fan or catalytic converter
  •   Over-temperature limit controller with adjustable cutout temperature for thermal protection class 2 in accordance
  •   with EN 60519-2 as temperature limiter to protect the oven and load
  •   Protective gas connection on the rear wall of furnace
  •   Manual or automatic gas supply system

Over-temperature limit controller

Furnace interior with high-quality, lightweight refractory brick insulation

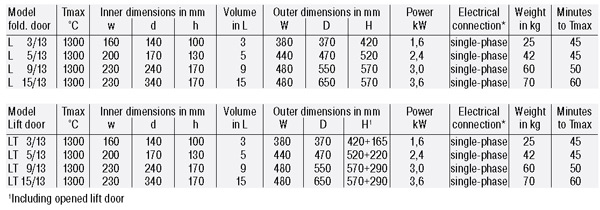

Models in this range include the L 3/13, L 5/13, L 9/13, L 15/13, LT 3/13, LT 5/13, LT 9/13 and LT 15/13.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
