Seaward MCS Solarlink Test Kit


A complete solution to the testing and measurement requirements of MCS MIS 3002.

The MCS Solarlink Test Kit meets all of the commissioning test requirements of MCS and BS EN 62446. It combines the PV150 installation test kit with the advanced Solar Survey 200R multifunction irradiance meter; offering a complete solution to the requirements of MCS MIS 3002.

The kit includes all of the necessary equipment to measure the electrical safety and performance of PV systems as well as irradiance.

The PV150 installation tester combines all test functions required to meet MCS and BS EN 62446 into one safe, easy-to-use, hand-held device. The addition of USB and wireless Solarlink connectivity makes the PV150 the most versatile, safe and technically advanced solar PV tester on the market.

Transforming the way that PV systems are tested, the PV150 replaces the three separate instruments which are ordinarily used for commissioning tests; combining earth continuity, insulation resistance, open circuit voltage, short circuit current, operating current (uses supplied AC/DC current) and DC operating power test functions into one handheld unit. The kit includes MC4 and Sunclix test adaptors which enable quick, safe and easy connection of the tester to the PV modules, strings or array.

As well as a comprehensive range of electrical test functions, the PV150 has memory to store up to 200 complete test records with USB connectivity to enable these to be quickly and easily downloaded to a PC. When coupled with Seaward’s SolarCert Elements software program professional test certificates and reports can be created.

Using Seaward Solarlink connectivity, the PV150 can wirelessly capture and record real-time irradiance, ambient temperature and PV module temperature measurements from the Solar Survey 200R multifunction irradiance meter. This means that you can take all measurements, as required by MCS and BS EN 62446 standards, simultaneously.

Key Features

  The comprehensive PV150 tester conducts all of the electrical tests required by MCS at the touch of a button.
  Solarlink™ connectivity between the PV150 tester and the Solar Survey 200R multifunction irradiance meter enables irradiance to be displayed and for irradiance, module and ambient temperature to be recorded within the PV150 in real-time as electrical tests are conducted.
  USB download of stored test results and irradiance measurements speeds up the completion of documentation and improves traceability of results.
  Solar Survey 200R uses a temperature compensated reference cell for accurate and representative irradiance measurements.
  When combined with SolarCert Elements software, the MCS Solarlink Test Kit represents the complete solution in PV commissioning, containing all that is needed for testing and documenting installations to the requirements of MCS.

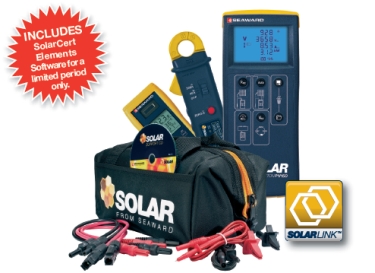

Kit Includes

  PV150 solar installation tester
  Solar Survey 200R irradiance meter
  AC/DC current clamp
  Rugged carry bag
  2 x MC4 test lead adaptors
  2 x Sunclix test lead adaptors
  Red and Black Test leads, with test probe with detachable alligator clips
  Quick Start Guides
  Support CD-Rom
  PV150 UKAS Calibration Certificate
  Solar Survey 200R Calibration Certificate


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
