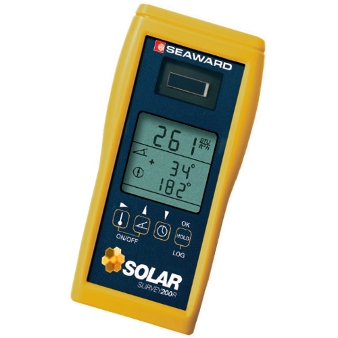

Seaward SolarSurvey 100/200R Series Irradiance Meters


The Solar Survey series of irradiance meters are the perfect tools for solar photovoltaic and solar thermal installers to conduct comprehensive solar site surveys.

These rugged handheld units not only measure irradiance, but also have a built-in inclinometer to measure roof pitch, compass to measure roof orientation and thermometer to measure ambient air and module temperature.These unique additional features makes the Solar Survey 100 and 200R truly versatile and indispensable instruments, ensuring optimum conditions for every system you install.

The 200R now features new SolarlinkTM connectivity which allows it to wirelessly give the PV150 real-time irradiance, ambient temperature and PV module temperature measurement results simultaneously to electrical tests being conducted, as required by MCS and BS EN 62446 standards. Results can be downloaded from the PV150 into certification software.

The Solar Survey 200R model also includes a data logging facility with USB interface for data download to a PC. This allows for irradiance and temperature to be recorded at user-defined intervals over a number of hours or days, the collected data can then be downloaded to a PC for analysis of for inclusion in installation reports.

These high specification irradiance meters simply and quickly measure the sunís energy, displaying the information in either W/m2 or BTU/hr-ft2, making them ideal for both solar photovoltaic and thermal applications.

The use of a photovoltaic reference cell, provides a more representative measurement of solar energy and greater accuracy and repeatability compared to irradiance meters which use simple photo diode detectors.

The Solar Survey 100 and 200R both incorporate a display hold feature, which enables the user to easily capture readings in difficult locations.


Data Sheet

Key Features

  Suitable for both photovoltaic and solar thermal installations
  Measures irradiance as required by BS EN 62446
  Built-in compass and inclinometer measure roof orientation and pitch
  Dual channel temperature measurement
  200R features Seaward SolarlinkTM for wireless connectivity with the PV150 Solar Installation tester (available seperately)
  Built-in data logger and USB interface (Solar Survey 200R model only)
  Rugged, robust and handheld

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
