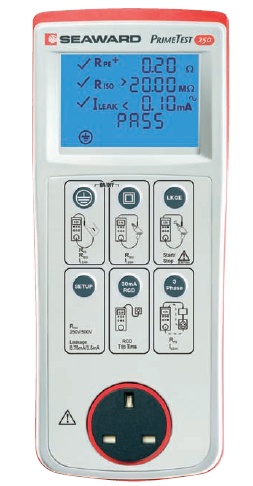

Seaward PrimeTest 250


A comprehensive handheld PAT tester. The engineer's ideal companion.


The handheld Primetest 250 PAT tester is unique in its range of electrical safety tests. This portable appliance tester will perform all of the tests required by the IEE Code of Practice, including RCD trip time, protective conductor current and touch current where required. The unit also includes a 250V DC insulation test suitable for testing sensitive electrical appliances and surge protected leads.

This handy battery powered PAT is ideal for ensuring that all workplace electrical equipment does not pose a danger to users -including three-phase machinery. As a result, 3-phase industrial plant and equipment used in factories, workshops, schools and colleges can all be tested safely and effectively.

The unique range of tests incorporated in this lightweight and highly versatile instrument means that most workplace appliances can be tested using the long life battery power. However, when protective conductor current or touch current measurements are required, simply connecting a mains supply will automatically select the correct test sequence.

The Primetest 250 is designed for ease of use and carries out all electrical safety tests against pre-set limits with measured test result values and clear PASS/FAIL indication on a large display.

The PrimeTest 250 is an easy-to-use tester which is ideal for those who need to test a wide range of electrical equipment.

*For 3 phase and RCD testing, accessories are required.

Key Features

  Intuitive and easy to use
  Comprehensive range of tests
  Automatic mains detection and leakage test selection
  RCD trip time test
  3 phase leakage testing

Users

  In-house safety testing engineers
  Electrical Contractors
  Service & Maintenance Engineers


Data Sheet

Ordering Information


382A910 Primetest 250

345A927 Primetest 250 PATBag - Primetest 250, PATBag carrying case, 110V adaptor, Training DVD, Guide to PAT testing, Reference Card, Business Builder, PATlog Book, 500 PASS labels, 500 Fail labels

345A928 Primetest 250 PATBag with Elements - Primetest 250, PATBag carrying case, PATGuard Elements, 110V adaptor, Training DVD, Guide to PAT testing, Reference Card, Business Builder, PATlog Book, 500 PASS labels, 500 Fail labels

372A953 RCD Adaptor - RCD Adaptor

391A920 3 Phase Leakage Adaptor 5 Star 16A - 3 Phase Leakage Adaptor 5 Star 16A

391A910 3 Phase Leakage Adaptor 5 Star 32A - 3 Phase Leakage Adaptor 5 Star 32A

71G082 Primetest Carry Case - Primetest Carry Case

300A002 0.5m Extension Adaptor - 0.5m Adaptor for testing extension leads

305A950 Earth Lead (Probe & Clip) - Earth Test Lead with probe and crocodile clip

44B141 16A Mains Lead - 16A mains lead



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
