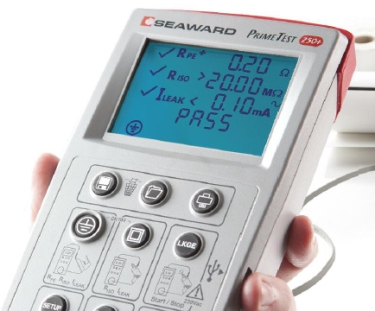

Seaward PrimeTest 250+


A comprehensive handheld PAT tester. The engineer's ideal companion.


A fantastic value simple-to-use PAT tester with a comprehensive range of tests, data storage, label printing features and free datalogger software.

The PrimeTest 250+ offers fast and efficient electrical safety testing with label printing and data storage, including free datalogger software.

Enabling simple, professional and fast PAT testing, this versatile tester features all of the required tests of the IET 4th Edition Code of Practice along with USB download. It is also fully compatible with the new Test n Tag Pro serial printer for quick and easy label printing without any setup required – just plug and print.

A Seaward datalogger program is supplied as standard and this along with the single key download feature allows measurement data to be quickly and easily transferred from the PrimeTest 250+ to PC at the press of a button; whilst all records are date stamped for complete traceability.

Data is downloaded in CSV format and can be accessed by a wide range of software packages or alternatively imported directly into PATGuard 3 Elite for truly professional reports and certificates.

As with all Seaward battery powered PAT testers, accurate earth continuity tests are a given thanks to the unique patent pending “zap” circuit design.

Key Features

  Very easy to use
  Plug and print - easy label printing with no setup
  Date stamped results for full traceability
  Single key save
  Single key download
  Download software included
  Store 999 appliance records
  Industry standard download format
  Comprehensive range of electrical tests
  Test 3 phase appliances

Electrical Test Functions

  Low current earth continuity test guaranteeing accurate measurement (patent pending)
  Insulation resistance at 250/500V
  IEC lead test
  Protective conductor current
  Touch current
  3 Phase leakage current (requires adaptor)
  Alternative leakage current
  RCD test (30mA/150mA)
  Power socket test

Users

  Professional PAT Testers
  Service Engineers
  Facilities Managers


Data Sheet

Ordering Information


PrimeTest 250+ part number: 403A910

PrimeTest 250+ with Pro accessory bundle part number: 403A956

PrimeTest 250+ with Pro accessory bundle & PATGuard 3 software part number: 403A957

PrimeTest 250+ with Elements bundle part number: 403A955



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
