BW Gas Alert Micro Clip

Protect Yourself

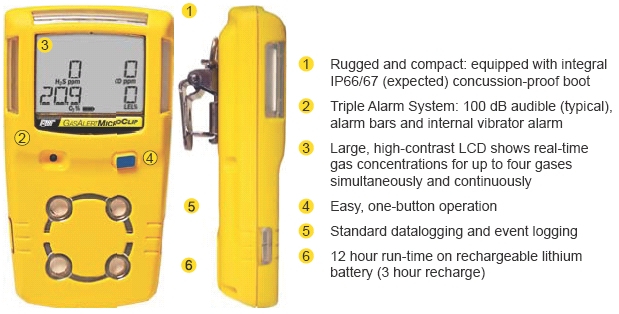

  Rugged, ultra-compact (4.2 x 2.4 x 1.4 in / 10.7 x 6.0 x 3.6 cm) and lightweight (5.6 oz. / 160 g)

  Simple one-button operation

  Standard datalogger (16 hours) and eventlogger (10 events)

  Durable, stainless steel alligator clip

  Integral concussion-proof boot for the most rugged environments

  Continuous LCD shows simultaneous gas concentrations for H2S,CO, O2, and combustibles (0-100% LEL or 0-5.0% Methane)

  Powered by a lithium polymer battery (run-time typically 14 hours;recharge in less than 3 hours)

  Provides 95 dB alarm tone and bright wide-angled alarm bars

  Equipped with internal vibrating alarm for high noise areas

  Backlight: in alarm (auto) and on demand reactivation

  Four alarm levels: Instant Low and High Alarm for all gases;TWA (time weighted average) and STEL (short term exposure limit) for H2S, CO; OL (over limit alarm)

  Simple automatic calibration procedure

  Fully compatible with BW's MicroDock II automatic test and calibration system

  Records TWA, STEL and maximum exposures to gas and displays readings on command

  User selectable options include: confi dence beep, latching alarm, calibration due date, bump due date, "SAFE" display function, multi-language, span concentration values, combustible sensor measurement selection (0-100%LEL or 0-5.0% v/v methane) and stealth mode

  Full function self-test of: sensor, battery, circuitry and audible/visual/vibration alarms

  Delivered ready for use with sensors, lithium polymer battey, stainless steel alligator belt clip, calibration hose/cap and instructions

Ordering Information

GasAlertMicroClip is delivered ready for use with sensors (as specified), stainless steel alligator clip, battery charger, calibration cap/hose, instructions in local languages and interactive training CD.

H2S, CO, O2, LEL - MC-XWHM-Y-UK-00
H2S, O2, LEL - MC-XWH0-Y-UK-00
CO, O2, LEL - MC-XW0M-Y-UK-00
O2, LEL - MC-XW00-Y-UK-00
H2S, CO - MC-00HM-Y-UK-00

Value Added Confined Space Kits

Kits include detector, standard accessories plus an IR Connectivity Kit, hardsided, foam-lined carrying case, sampling equipment and calibration gas cylinders(s) with regulator(s).

H2S, CO, O2, LEL - MC-XWHM-Y-UK-07
H2S, O2, LEL - MC-XWH0-Y-UK-10
CO, O2, LEL - MC-XW0M-Y-UK-16
O2, LEL - MC-XW00-Y-UK-22
H2S, CO - MC-00HM-Y-UK-25

Note: for regions outside the United Kingdom, replace "UK" with:

EU: Europe NA: North America ME: Middle East AU: Australia CN: China CH: Switzerland
OR: Other regions with 3-pin UK plug OE: Other regions with 2-pin EU plug


IR Connectivity Kit
MicroDock II-automatic calibration and test station
SamplerPak-motorized sampling pump
Manual Sampling Kit-aspirator pump
Vehicle charger kit

Data Sheet
User Manual
Order Codes

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
