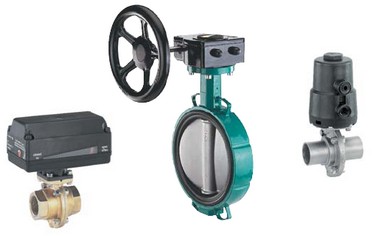

Gemu Butterfly Valves


Butterfly valves, metal

  Nominal size: DN 15 - DN 2000
  Operating pressure: 0 - 50 bar (up to PN 63)
  Max. operating temp.: -20 to 600°C
  Body materials: Brass, cast iron, SG iron, cast steel, stainless steel
  Body configuration: Straight through body (2/2-way valve)
  Operator: Manual, pneumatic, motorized
  Special version: Wafer type check valve DN 40 - DN 600 brass and stainless steel

Butterfly valves, plastic

  Nominal size: DN 15 - DN 250
  Operating pressure: 0 - 6 bar (up to PN 10)
  Max. operating temp.: 0 to 90°C
  Body materials: PVC-U, PES
  Body configuration: Straight through body (2/2-way valve)
  Operator: Manual, pneumatic, motorized
  Special version: Wafer type check valves DN 40 - DN 600 from PVC, PP, PVDF

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
