Gemu Solenoid Valves

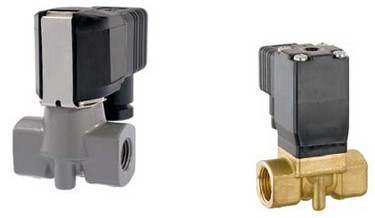

Solenoid valves, metal

  Nominal size: DN 8 - DN 50
  Operating pressure: 0 - 16 bar (up to PN 16)
  Max. operating temp.: -10 to 90°C
  Body materials: Brass, stainless steel
  Body configuration: Straight through body (2/2-way valve)
  Operator: Electromagnetically servo controlled

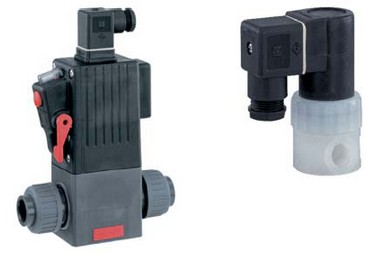

Solenoid valves, plastic

  Nominal size: DN 2 - DN 50
  Operating pressure: 0 - 6 bar (up to PN 6)
  Max. operating temp.: 0 to 60°C
  Body materials: PVC-U, PVDF
  Body configuration: Straight through body (2/2-way valve)
  Operator: Electromagnetically directly or servo controlled

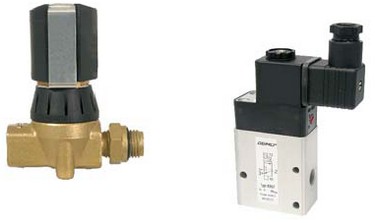

Pilot solenoid valves / Valve manifolds

  Nominal size: DN 1 - DN 7
  Operating pressure: 0 - 10 bar
  Max. operating temp.: -15 to 50°C
  Body materials: PBTP, PPS, Aluminium
  Body confi guration: 3/2-way, 4/2-way, 5/2-way, 5/3-way
  Operator: Electromagnetically directly and servo controlled

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
