Kidde Alarmline II Analogue and Digital Linear Heat Detection (LHD)

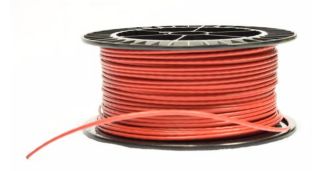

The Kidde Alarmline II sensor cables are both tough and flexible and provide a cost-effective form of fire detection.

They are simple to install and can be used for general area protection or proximity detection. The design and installation of the system can be specifically made to meet the needs of the risks which you are faced with through the use alarm temperatures, protective coatings and installation fixings.

Find out more on our sister site Cadmus Products.

The Kidde Alarmline II sensor cables can withstand the toughest of conditions and can be integrated to any fire control panel through multiple inputs. The user is able to locate where the alarm has originated from along an extended digital sensor cables of up to 3000m using the Digital Location Control Unit.

Operation

These specially designed cables are made up of a twisted pair of timetallic conductors, surrounded by a durable temperature sensitive polymer and a protective outer coating.

The two inner conductors of the cable are twisted together so that there is a mechanical tension between them. The temperature sensitive polymer softens when it reaches a specific temperature, meaning that the two inner cores are forced together, creating a short circuit. The simple operation of the Alarmline II digital sensor cable means that it is compatible with any control equipment capable of accepting contact closure type initiating devices.

The Alarmline II digital sensor cable range is made up of 4 different fixed alarm temperature cables with a selection of available protective outer coatings.


  Extended range of cable sheaths for varying degrees of protection in more challenging environments

  Analogue controllers with LCD display for autonomous setup without the need for a PC, or without LCD display for PC configuration

  A location control unit (LCU) for the fixed temperature (Digital) LHD cables allowing accurate location of the alarm point along up to 3000 meters of cable


Technical Manual

Ordering Information


Analogue Linear Heat Cable

AA-000x (Specified per Meter) Alarmline II Analogue LHD Cable PVC
AA-0100 (100m) Alarmline II Analogue LHD Cable PVC
AA-0500 (500m) Alarmline II Analogue LHD Cable PVC
AAN-0100 (100m) Alarmline II Analogue LHD Cable Nylon
AAN-0500 (500m) Alarmline II Analogue LHD Cable Nylon
AAP-0100 (100m) Alarmline II Analogue LHD Cable Polypropylene
AAP-0500 (500m) Alarmline II Analogue LHD Cable Polypropylene
AASS-0100 (100m) Alarmline II Analogue LHD Cable SS & PVC
AASS-0500 (500m) Alarmline II Analogue LHD Cable SS & PVC
AASSN-000x (Specified per Meter) Alarmline II Analogue LHD Cable SS & Nylon
AASSN-0100 (100m) Alarmline II Analogue LHD Cable SS & Nylon
AASSN-0500 (500m) Alarmline II Analogue LHD Cable SS & Nylon

Analogue Linear Heat Cable Controllers

AACULP Alarmline II Analogue LHD Control Unit - PC Programmable
AACUSP Alarmline II Analogue LHD Control Unit - Self Programmable

Digital Linear Heat Cable

AD68-000x (Specified per Meter) Alarmline II Digital LHD Cable 68°C PVC
AD68-0100 (100m) Alarmline II Digital LHD Cable 68°C PVC
AD68-0500 (500m) Alarmline II Digital LHD Cable 68°C PVC
AD68-1000 (1000m) Alarmline II Digital LHD Cable 68°C PVC
AD68N-0100 (100m) Alarmline II Digital LHD Cable 68°C Nylon
AD68N-0500 (500m) Alarmline II Digital LHD Cable 68°C Nylon
AD68N-1000 (1000m) Alarmline II Digital LHD Cable 68°C Nylon
AD68P-0100 (100m) Alarmline II Digital LHD Cable 68°C Polypropylene
AD68P-0500 (500m) Alarmline II Digital LHD Cable 68°C Polypropylene
AD68P-1000 (1000m) Alarmline II Digital LHD Cable 68°C Polypropylene
AD68SS-0100 (100m) Alarmline II Digital LHD Cable 68°C SS & PVC
AD68SS-0500 (500m) Alarmline II Digital LHD Cable 68°C SS & PVC
AD88-000x (Specified per Meter) Alarmline II Digital LHD Cable 88°C PVC
AD88-0100 (100m) Alarmline II Digital LHD Cable 88°C PVC
AD88-0500 (500m) Alarmline II Digital LHD Cable 88°C PVC
AD88-1000 (1000m) Alarmline II Digital LHD Cable 88°C PVC
AD88N-0100 (100m) Alarmline II Digital LHD Cable 88°C Nylon
AD88N-0500 (500m) Alarmline II Digital LHD Cable 88°C Nylon
AD88N-1000 (1000m) Alarmline II Digital LHD Cable 88°C Nylon
AD88P-0100 (100m) Alarmline II Digital LHD Cable 88°C Polypropylene
AD88P-0500 (500m) Alarmline II Digital LHD Cable 88°C Polypropylene
AD88P-1000 (1000m) Alarmline II Digital LHD Cable 88°C Polypropylene
AD88SS-0100 (100m) Alarmline II Digital LHD Cable 88°C SS & PVC
AD88SS-0500 (500m) Alarmline II Digital LHD Cable 88°C SS & PVC
AD105-0100 (100m) Alarmline II Digital LHD Cable 105°C PVC
AD105-0500 (500m) Alarmline II Digital LHD Cable 105°C PVC
AD105-1000 (1000m) Alarmline II Digital LHD Cable 105°C PVC
AD105N-0100 (100m) Alarmline II Digital LHD Cable 105°C Nylon
AD105N-0500 (500m) Alarmline II Digital LHD Cable 105°C Nylon
AD105N-1000 (1000m) Alarmline II Digital LHD Cable 105°C Nylon
AD105P-0100 (100m) Alarmline II Digital LHD Cable 105°C Polypropylene
AD105P-0500 (500m) Alarmline II Digital LHD Cable 105°C Polypropylene
AD105P-1000 (1000m) Alarmline II Digital LHD Cable 105°C Polypropylene
AD105SS-0100 (100m) Alarmline II Digital LHD Cable 105°C SS & PVC
AD105SS-0500 (500m) Alarmline II Digital LHD Cable 105°C SS & PVC
AD185N-0100 (100m) Alarmline II Digital LHD Cable 185°C Nylon
AD185N-0500 (500m) Alarmline II Digital LHD Cable 185°C Nylon
AD185N-1000 (1000m) Alarmline II Digital LHD Cable 185°C Nylon
AD185SS-0100 (100m) Alarmline II Digital LHD Cable 185°C SS & Nylon
AD185SS-0500 (500m) Alarmline II Digital LHD Cable 185°C SS & Nylon

Digital Linear Heat Cable Controller

ADLCU Alarmline II Digital LHD Location Control unit



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
