Small package for easy and discreet installation
  Benefits of true Aspirating Smoke Detection for applications where cost was previously a limitation
  Special design sensor chamber avoids airflow problems associated with point detector in a box solutions
  Up to 50m of sampling pipe with 10 sampling holes
  Unique Classifire-3D® Perceptive Artificial Intelligence system
  LDD 3D3 (Laser Dust Discrimination)
  Easy commission without the need for a PC
  Networking and remote communications available through plug-in card

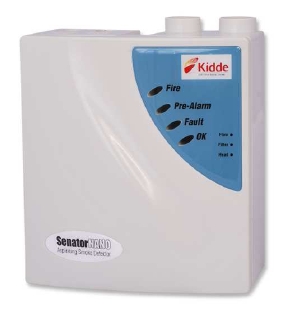

The Senator Nano has been designed to provide low cost entry level aspirating smoke detection while maintaining many of the features of the Senator product range.

Classifire-3D® Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a small comms room or reduced sensitivity in a smoky area.

The detector is supplied in an easy to install robust polycarbonate enclosure. Simple on site programming is provided through an internal DIL switch requiring no special programmer or PC. Secondary LED indications are provided on the unit to assist with diagnostics.

An optional communications card allows the Senator Nano to be included as part of a Senator network with remote communications using the SenseNET software package.

Interfacing with other equipment can easily be achieved through the Integral Pre-Alarm, Fire and Fault relays. Senator Nano is also fully compatible with the Addressable Protocol Interface cards (APIC) allowing it to interface to addressable fire alarm panels using several available protocols.

Applications

  Plant rooms
  Equipment cabinets
  Motor rooms
  Prison cells
  Lift shafts
  Wind generators
  Critical equipment
  Trains
  Ceiling voids
  Anti smoking enforcement

Datasheet

9-30719-KID
Senator Nano
An entry level detector providing a cost effective solution for small areas while retaining the key benefits of the Senator ASD range. Moulded polycarbonate enclosure, quick and easy set-up using internal switches. Basic LED status indicators, two alarm levels with relay outputs, sensitivity range 0.4 - 25% obs/m. Optional communications card available for Sense NET network and PC connection. Provided with two installed plastic cable glands. Requires external 24vdc supplyDimensions: 190w x 230h x 110d (including cable glands)

9-30721-KID
Senator Nano c/w communication card
As part no. 30719 with communication card part no. 30720 pre-installed. Provided with two installed plastic cable glands.Requires external 24vdc supplyDimensions: 190w x 230h x 110d (including cable glands)

Aspirating Smoke Detection System Accessories

9-30624-KID
Senator Command Module
Provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command module allows global programming of all detector functions simultaneously.Large LCD and LED status indications. Requires external 24vdc supply.Dimensions: 425w x 370h x 115d

9-30627-KID
Senator 19" rack command module
Command module as per part no. 30624. Constructed in a compact stainless steel enclosure enabling mounting in a 3U high 19" rack mount cabinet.

9-30709-KID
Senator Command Module - steel enclosure
As per part number 30624-KID with a steel front cover for industrial type applications. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30802-KID
Senator Remote Display Unit (RDU)
The RDU connects to the Senator range of detectors using the RS485 data bus and mimics the LED status indications of the detector. The RDU monitors the status of a single detector. More than one RDU can be allocated to a single detector. The RDU can be mounted in either a single wall mounted enclosure or a 3U high 19" rack enclosure. Requires a 24vdc supply.

9-30803
RDU Relay board
This is an optional relay board which can be used with the Senator RDU to provide Volt Free Changeover Contacts for signalling to other equipment. Five relays are provided for Fire 1, Fire 2, Pre-alarm, Aux Alarm and Fault (energised).

9-30430
APIC card - Apollo protocol
Can be fitted internally to any Senator detector unit or Command Module allowing them to be connected to an Apollo protocol addressable loop. A single APIC may be used in Multi Address mode when installed inside a command module for signalling up to 127 detectors onto the addressable loop reducing costs on larger systems.

9-30720
Nano communication card
Optional card for installation in the Senator Nano Aspirating Detector. The communications card allows the Senator Nano to be connected to a PC or SenseNET network.

9-30436
Relay/Input card
The Relay/Input card can be fitted into the Senator 25 and 100 detectors to provide an additional five relay outputs for signalling to other equipment. Three inputs are provided on the card that can be programmed for remote reset, isolate, classifire override or PSU fault monitoring.
