Small low cost aspirating smoke detector for easy and discreet installation.
  High sensitivity provided by laser based forward light scatter for reliable early warning.
  Two sampling pipes (100m aggregate) for flexibility.
  Unique ClassiFire-3D® Perceptive Artificial Intelligence System.
  Laser Dust Discrimination (LDD) with a patented dust management and separator system.
  RS485 communications built in as standard for networking and remote communications.

Senator 100 is designed to provide very high sensitivity smoke detection in a small package.

Options Available

  Addressable Protocol Interface Cards APIC™ available for most popular industry signalling protocols.
  Command Module available for central monitoring and display.
  SenseNet compatible - up to 127 detectors per loop.
  Remote Display units available.

Approvals

  Approved/listed by most major international fire protection certification agencies

Datasheet

9-30672-KID

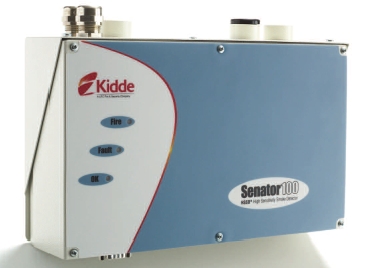

Senator 100
Two pipe aspirating smoke detector with a sensitivity scale ranging 0.003 - 25% obs/m. Classifire 3D® Artificial Intelligence allows it to automatically adjust sensitivity with no external input. Laser Dust Discrimination (LDDTM) makes this product suitable for a wide range of environments. Status indicators provided for 'OK', 'FIRE' and 'Fault'. Fire and Fault relay outputs for interfacing to other fire control equipment. SenseNET network ready. Requires external 24vdc supply. Provided with two installed metal cable glands.Maximum pipework length: 2 x 50m (2 x 25m in high airflow) Dimensions: 300w x 200h x 85d (including cable glands)

9-30764-KID
Senator 100 c/w Relay/Input card
As per part number 30672 with the relay/input card (30436) pre-installed. The relay/input card provides four alarm level relays, an additional fault relay and three programmable inputs that can be used for remote reset, remote isolate, PSU monitoring and Classifire override functions. Requires external 24vdc supply. Provided with two installed metal cable glands.Maximum pipework length: 2 x 50m (2 x 25m in high airflow) Dimensions: 300w x 200h x 85d (including cable glands)

Aspirating Smoke Detection System Accessories

9-30624-KID
Senator Command Module
Provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command module allows global programming of all detector functions simultaneously.Large LCD and LED status indications. Requires external 24vdc supply.Dimensions: 425w x 370h x 115d

9-30627-KID
Senator 19" rack command module
Command module as per part no. 30624. Constructed in a compact stainless steel enclosure enabling mounting in a 3U high 19" rack mount cabinet.

9-30709-KID
Senator Command Module - steel enclosure
As per part number 30624-KID with a steel front cover for industrial type applications. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30802-KID
Senator Remote Display Unit (RDU)
The RDU connects to the Senator range of detectors using the RS485 data bus and mimics the LED status indications of the detector. The RDU monitors the status of a single detector. More than one RDU can be allocated to a single detector. The RDU can be mounted in either a single wall mounted enclosure or a 3U high 19" rack enclosure. Requires a 24vdc supply.

9-30803
RDU Relay board
This is an optional relay board which can be used with the Senator RDU to provide Volt Free Changeover Contacts for signalling to other equipment. Five relays are provided for Fire 1, Fire 2, Pre-alarm, Aux Alarm and Fault (energised).

9-30430
APIC card - Apollo protocol
Can be fitted internally to any Senator detector unit or Command Module allowing them to be connected to an Apollo protocol addressable loop. A single APIC may be used in Multi Address mode when installed inside a command module for signalling up to 127 detectors onto the addressable loop reducing costs on larger systems.

9-30720
Nano communication card
Optional card for installation in the Senator Nano Aspirating Detector. The communications card allows the Senator Nano to be connected to a PC or SenseNET network.

9-30436
Relay/Input card
The Relay/Input card can be fitted into the Senator 25 and 100 detectors to provide an additional five relay outputs for signalling to other equipment. Three inputs are provided on the card that can be programmed for remote reset, isolate, classifire override or PSU fault monitoring.
