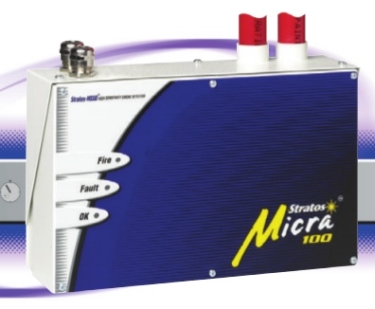

Kidde Stratos Micra 100 Aspirating Smoke Detector



All Stratos-HSSD detectors in this product range use the acclaimed combination of laser forward light scattering and the unique Perceptive Artificial Intelligence system - ClassiFire®. The three products above are of identical sensitivity capability, but vary in the recommended amount of sampling pipe. They are designed for the protection of differing capacity areas, or for incorporation into larger fire detection systems with a combination of appropriate detection devices and technologies.

Find out more on our sister site Cadmus Products.

The Kidde Stratos Micra 100 detector is designed to compliment the AirSense range of aspirating detectors. Since its introduction, the Stratos-Micra 25 detector has proven a world-beater in terms of localised incipient fire detection. Now the concept has been extended to permit a maximum recommended sampling pipe length of 100 metres.

The system is fully compatible with all other Stratos detectors and ancillary devices such as remote bargraph displays and the Command Module for interconnection of large quantities of Stratos detection devices. The Stratos detectors are directly compatible with a range of addressable detection panels from a growing list of international manufacturers.

Kidde Stratos Micra 100 Aspirating Smoke Detector


Datasheet

Catalogue

Ordering Information


9-30672
Stratos Micra 100
Two pipe aspirating smoke detector with a sensitivity scale ranging 0.003 - 25% obs/m. Classifire 3D® Artificial Intelligence allows it to automatically adjust sensitivity with no external input. Laser Dust Discrimination (LDDTM) makes this product suitable for a wide range of environments. Status indicators provided for 'OK', 'FIRE' and 'Fault'. Fire and Fault relay outputs for interfacing to other fire control equipment. SenseNET network ready. Requires external 24vdc supply. Provided with two installed metal cable glands.Maximum pipework length: 2 x 50m (2 x 25m in high airflow) Dimensions: 300w x 200h x 85d (including cable glands)

9-30764
Stratos Micra 100 c/w Relay/Input card
As per part number 30672 with the relay/input card (30436) pre-installed. The relay/input card provides four alarm level relays, an additional fault relay and three programmable inputs that can be used for remote reset, remote isolate, PSU monitoring and Classifire override functions. Requires external 24vdc supply. Provided with two installed metal cable glands.Maximum pipework length: 2 x 50m (2 x 25m in high airflow) Dimensions: 300w x 200h x 85d (including cable glands)

Aspirating Smoke Detection System Accessories

9-30624
Stratos Command Module
Provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command module allows global programming of all detector functions simultaneously.Large LCD and LED status indications. Requires external 24vdc supply.Dimensions: 425w x 370h x 115d

9-30627
Stratos 19" rack command module
Command module as per part no. 30624. Constructed in a compact stainless steel enclosure enabling mounting in a 3U high 19" rack mount cabinet.

9-30436
Relay/Input card
The Relay/Input card can be fitted into the Micra 25 and 100 detectors to provide an additional five relay outputs for signalling to other equipment. Three inputs are provided on the card that can be programmed for remote reset, isolate, classifire override or PSU fault monitoring.

9-30430
APIC card - Apollo protocol
Can be fitted internally to any Stratos detector unit or Command Module allowing them to be connected to an Apollo protocol addressable loop. A single APIC may be used in Multi Address mode when installed inside a command module for signalling up to 127 detectors onto the addressable loop reducing costs on larger systems.

9-30720
Nano communication card
Optional card for installation in the Stratos Nanos Aspirating Detector. The communications card allows the Stratos Nano to be connected to a PC or SenseNET network.

9-30438
APIC card - Hochiki protocol
As part number 30430 for Hochiki protocol panels

9-30433
APIC card - Notifier protocol
As part number 30430 for Notifier protocol panels

9-30803
RDU Relay board
This is an optional relay board which can be used with the Stratos RDU to provide Volt Free Changeover Contacts for signalling to other equipment. Five relays are provided for Fire 1, Fire 2, Pre-alarm, Aux Alarm and Fault (energised).

9-30802
Stratos Remote Display Unit (RDU)
The RDU connects to the Stratos range of detectors using the RS485 data bus and mimics the LED status indications of the detector. The RDU monitors the status of a single detector. More than one RDU can be allocated to a single detector. The RDU can be mounted in either a single wall mounted enclosure or a 3U high 19" rack enclosure. Requires a 24vdc supply.

9-30709
Stratos Command Module - steel enclosure
As per part number 30624-KID with a steel front cover for industrial type applications. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30250
SenseNET Software with license dongle
Software package which allows networks of Stratos detectors to be monitored centrally from a PC. Graphical maps of the site can be imported for easy location of detectors, alarm zones etc. Up to 16 individual networks can be monitored.

9-30419
Stratos Serial cable
Required for connecting a laptop or PC to a Stratos Aspirating Smoke Detector. Allows Stratos Remote software to communicate with the detection unit enabling, programming and diagnostic facilities. The cable is a 9 pin to 9 pin female D-type crossover connection null modem.

9-30841
EN 54-4 approved, 24 V 2 A + 0.8 A Intelligent Power Supply
A versatile solution for powering aspirating smoke detectors. A high capacity power supply provides current for 'day to day' system operation while charging back-up batteries. The PSU is capable of providing 24hr mains fail battery back-up using industry standard sealed lead acid batteries. A relay output is provided for remote monitoring of mains fail and battery faults. Dimensions: 400w x 420h x 80d Contains space for 2 x 17Ah batteries max

9-30842
EN 54-4 approved, 24 V 5 A + 1.6 A Intelligent Power Supply
A versatile solution for powering aspirating smoke detectors. A high capacity power supply provides current for 'day to day' system operation while charging back-up batteries. The PSU is capable of providing 24hr mains fail battery back-up using industry standard sealed lead acid batteries. A relay output is provided for remote monitoring of mains fail and battery faults. Dimensions: 400w x 420h x 80d Contains space for 2 x 17Ah batteries max 2 x 38Ah batteries can be connected using remote battery box part number 30843

9-30843
External battery box
For use with power supply part number 30842. The remote battery box allows the connection of 2 x 38 Ah batteries to the power supply. Dimensions: 420w x 420h x 280d

9-30817
Single Remote Display Unit wall mounting enclosure
Small steel enclosure for wall mounting a single Remote Display Unit (30802) and optional relay board (30803).

1-21888-K063
PSX3 Particle Separator
The particle separator is used to limit the contamination to the detector when installed in dirty and dusty environments. The unit is supplied with union sockets to allow it to be used with 25mm and ¾" pipework. Foam elements inside the unit can easily be replaced as necessary.The particle separator is used to limit the contamination to the detector when installed in dirty and dusty environments. The unit is supplied with union sockets to allow it to be used with 25mm and ¾" pipework. Foam elements inside the unit can easily be replaced as necessary.Replacement foam elements, part number 21888-K064-P.

9-30730
Stainless steel external filter
Commonly used with the Stratos Ex unit the filter controls the dust and dirt contamination in harsh environments. As the unit is external to the detector enclosure, access to the filters for maintenance is easier and in hazardous areas prevents the need to declassify the area. 304 Grade stainless steel enclosure, requires 2 x filters (30072)

9-30422
Air Heater box
Suitable for installations where humidity or condensation may be a problem. The air heater is used to heat and dry the air before it reaches removing any moisture that may be in the air and preventing any condensation from cold air entering the detector.Enclosure Sheet Steel, Heating element Self- regulating 230 VAC, 60/200 watts

9-30820
Yuasa NP7-12 Sealed Lead Acid battery
12V 7Ah battery used with power supplies to provide a back -up supply in case of mains failure. 2 batteries would be required per power supply.

9-30822
Yuasa NP17-12 Sealed Lead Acid battery
12V 17Ah battery used with power supplies to provide a back -up supply in case of mains failure. 2 batteries would be required per power supply.

Spare parts - Filters

9-30095
Stratos Quadra replacement filter
Four of these filters are required for each Stratos Quadra detector. NB: Stratos Quadra is an obsolete product and it is advised to upgrade these detectors as soon as possible.

9-30755-P
Micra/Nano filter pack
A pack of 6 cartridge type filters for use with all variants of the Micra 25, Micra 100 and Stratos Nano Aspirating Smoke Detectors. One filter required per unit.

9-30699-P
HSSD2 filter pack
A pack of 6 Cartridge type filters for use with all variants of the Stratos HSSD2 Aspirating Smoke Detection unit. One filter required per unit.

9-30072-P
HSSD MK1 & Ex filter pack
A pack of 6 cartridge type filters for use with all variants of the Stratos HSSD MK1 Aspirating Smoke Detection unit. NB: Stratos HSSD MK1 is an obsolete product and it is advised to upgrade these detectors as soon as possible. This filter is also used inside the external stainless steel filter unit (30730) for the Stratos Ex detector.

1-21888-K064-P
Particle separator filter pack
A 6 Pack of replacement filters for the particle separator, part no. 21888-K063 Each replacement filter pack contains 3 x foam elements, one pack is required per particle separator.

Spare parts - Stratos Micra 25/100

9-30750
Replacement Stratos Micra 25 detector
As per part number 30671 without the docking station (30741) this allows the user to retain the existing docking station in situ and replace the detector easily without disturbing wiring or pipework installations.

9-30753
Stratos Micra 25 docking station
Replacement mounting plate for the Stratos Micra 25 Aspirating Smoke detector

9-30740
Replacement Stratos Micra 100 detector
As per part number 30672 without the docking station (30742) this allows the user to retain the existing docking station in situ and replace the detector easily without disturbing wiring or pipework installations.

9-30742
Stratos Micra 100 docking station
Replacement mounting plate for the Stratos Micra 100 Aspirating Smoke detector

Spare parts - Stratos HSSD 2 detectors

9-30698
Stratos HSSD 2 detector head assembly
Replacement detector head for all variants of the Stratos HSSD 2 Aspirating Smoke Detector.

9-30697
Stratos HSSD 2 Main PCB
Replacement main PCB for all variants of the Stratos HSSD 2 Aspirating Smoke Detector.

9-30696
Stratos HSSD 2 display
Replacement display module for all variants of the Stratos HSSD 2 Aspirating Smoke Detector excluding models 30620 and 30707 which require the command module display

9-30695
Stratos HSSD 2 flow sensor PCB
Replacement flow sensor PCB for all variants of the Stratos HSSD 2 Aspirating Smoke Detector.

9-30058
Stratos HSSD 2 high efficiency aspirator unit
Replacement fan for all variants of the Stratos HSSD 2 Aspirating Smoke Detector.

Spare parts - Stratos Command Module

9-30690
Command Module main PCB
Replacement main PCB for all variants of the Stratos Command Module.

9-30691
Command Module display
Replacement display module for all variants of the Stratos HSSD Command Module including models 30620 and 30707.

Test equipment

1-21888-K033
Wire burn test wire
10 x 0.1mm PVC coated wire (white) supplied on a 100m reel. Used in conjunction with the Wire burn test rig 30051

1-21888-K030
Smoke pellets
Ideal for testing large area aspirating smoke detection systems. Pack of 6 x 13g pellets. Each pellet has a 40 sec burn time creating 18m3 of smoke

9-30051
Wire burn test rig
Test equipment used to test high sensitivity aspirating detection systems.2 x 6v 15A outputs



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
