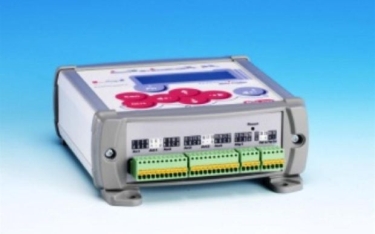

LSI LASTEM M-Log Mini Data Logger



The LSI LASTEM M-Log Mini Data logger is the compact data logger type for environmental monitoring which is suitable for both the outdoor and indoor purposes.

This device can mounted on the tripod for a portable application or installed in the IP65 box in an outdoor, long term application. Flexible and small, whilst durable and powerful, the M-Log may be used in the virtually unlimited applications in environments.

The input N.4 is used for the analogue signals and the digital input N.1 can configured for the digital or frequency signals and input N.1 for the RS232 sensors.

The M-Log has environmental quantities stored in the internal library. The internal library includes the sampling programmable rate for every sensor and mathematical calculations. The M-Log will manage N.4 channel from sensor and N.16 type derived quantities in just 1 second.

An LSI LASTEM M-Log will feed the sensor that requires a power supply for its operation, with the user defined time of the warm up.

The M-log will run at the input voltage of 12Vdc power supply and is well equipped with 2 RS232 type serial ports.

LSI LASTEM M-Log Mini Data Logger

Models

  ELO007
  ELO008
  ELO009
  ELO010

Downloads


Datasheet
Manual
Quick Start

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
