Carbolite BWF 1200 degC Burn-Off Furnaces


  Maximum operating temperatures of 1100 degC & 1200 degC
  Chamber capacity of 13 litres
  Powerful free radiating coiled wire elements on both sides of the chamber ensure good thermal response
  A convection airflow is created by air inlet holes in the door and a tall chimney, which rapidly removes smoke from the chamber, reducing the effects of carbon build up
  Hard wearing refractory insulation inside chamber and around the entrance provides good resistance to abrasion
  Hard ceramic hearth provides robust base, and can be replaced in the event of spillage
  Vertical counter-balanced door keeps hot door insulation away from operator
  Postive break door safety switch isolates chamber from power supply, when the door is opened
  Double skinned construction allows convection air flow to cool the outer case, to conform to EN61010 safety standard
  Choice of PID controller or programmers
  Applications in the food industry include burn off of samples of natural materials such as natural fibres and cereal food stuffs such as wheat flour, milk powder and soya
  Applications in general industry include, burn out of dental wax moulds, depryogenating of critical glassware and cleaning of metal components

Models in this range:

BWF 11/13
BWF 12/13

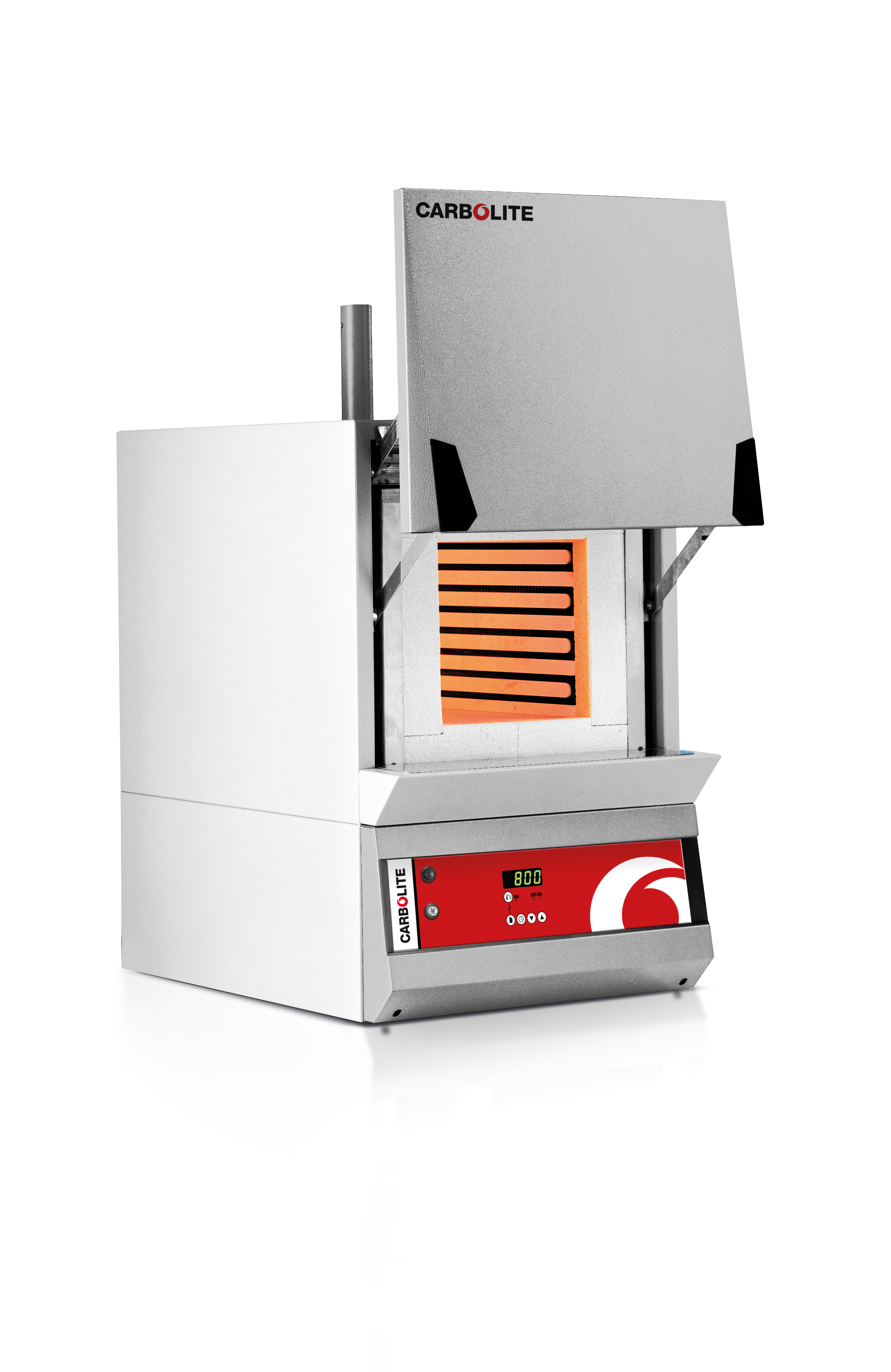

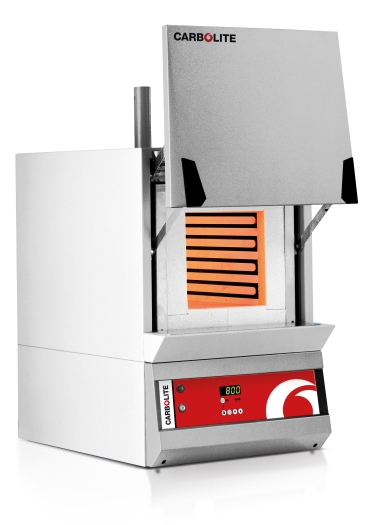

Click on the photo above for a high resolution version.



Specifications
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
