Dehn + Sohne - PHE Voltage Detector


Nominal voltages up to 30 kV / 50 Hz

  Easy and safe testing
  Reliable indication
  Easy to use

Part Numbers

Nominal Voltages up to 30 kV / 50 Hz

  PHE 3 S - 767 403
  PHE 6 S - 767 406
  PHE 10 S - 767 418
  PHE 20 S - 767 428
  PHE 30 S - 767 438
  PHE 3 10 S - 767 410
  PHE 6 20 S - 767 420
  PHE 15 30 S - 767 430

Nominal Voltage Ranges up to 30 kV / 50 Hz, switchable

The nominal voltage selector switch allows to switch between three voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position and provides protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

  PHE U 3 30 S - 767 433

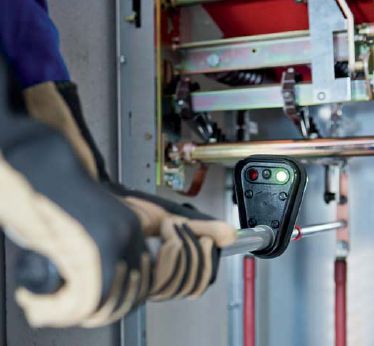

PHE voltage detector with visual indication


Voltage Detectors Brochure

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
