Dehn + Sohne - Equipment for Voltages up to 1000 V


Three-pole Earthing and Short-Circuiting Kit VI

  Fully insulated, shock-proof version
  Fully equipped kit for cable distribution cabinets
  Safe operation with insulated earthing handle of type VI (with dual function), suitable for both inserting and removing earthing cartridges with T connection as well as for attaching earth ing and short-circuiting devices (EaS devices)
  Waterproof, plastic-sheathed cable entry and node unit, additionally protected against twisting
  Other cable lengths can be selected online via the earthing and short-circuiting configurator

Part Numbers

Kit in plastic Case

  EKS VI 2F KVS KK - 745 903

Kit in Sheet Metal Case

  EKS VI 2F KVS SBK - 745 901

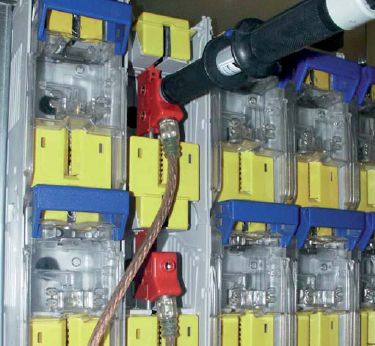

Attaching a fully insulated earthing and short-circuiting device using an earthing handle of type VI


Three-pole Earthing and Short-Circuiting Kit TI

  Fully equipped kit for cable distribution cabinets
  Safe operation with insulated earthing handle of type TI (with dual function), suitable both for installing and removing earthing cartridges with M10 connection as well as for attaching earthing and short-circuiting devices (EaS devices)
  Waterproof, plastic-sheathed cable entry and node unit, additionally protected against twisting
  Other cable lengths can be selected online via the earthing and short-circuiting configurator

Part Numbers

Kit I in Sheet Metal Case

  EKS TI KVS SBK - 766 302

Kit II in Sheet Metal Case

  EKS TI 2F KVS SBK - 745 500



Attaching a partly insulated earthing and short-circuiting device using an earthing handle of type TI


Three-pole Earthing and Short-Circuiting Devices (With clamps for crane conductor bars)

  For insulated or uninsulated conductor bars of cranes and lifting equipment
  Allows to lock the clamping range of the clamps in several positions
  Waterproof, plastic-sheathed cable entries and node unit, with additional protection against twisting
  Other cable lengths can be selected online via the earthing and short-circuiting configurator

Part Numbers

With Clamps for insulated Conductor Bars

  EKV3 25IS ZK - 745 370
  EKV3 35IS ZK - 745 371
  EKV3 50IS ZK - 745 372

With Clamps for uninsulated Conductor Bars

  EKV3 25BS ZK - 745 375
  EKV3 35BS ZK - 745 376

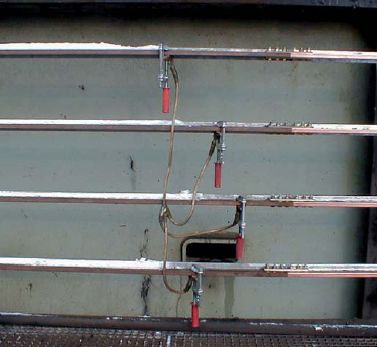

Three-pole earthing and short-circuiting device with clamps


Four-pole to six-pole Earthing and Short-Circuiting Devices (For low-voltage overhead conductors up to 12 mm diameter (95 mm2)

  Insulated screw clamps for overhead conductors
  Four-pole version, extendible up to six poles
  Reliable conductivity due to copper bar in the insulating tube

The devices have an insulated threaded stick (with handle) for safe contact with the overhead lines and for fast installation (reliable contact due to spring-loaded screw clamp) at the overhead conductors.

The fully insulated device is available as four-pole (with fixed node unit), five-pole or six-pole version (with extendible node unit).

Part Numbers

Four-pole Node Unit

  KV4 25 NSFL ISK95 - 742 225

Four-pole Node Unit, extendable up to five to six-pole

  KV4 25 NSFL ISK95 E - 742 425



Sample construction of a four-pole short-circuiting device


Three-pole Earthing and Short-Circuiting Kit for Street Lighting Systems

  For junction and fuse boxes of street lighting systems
  For E14 fuse links
  E27 to E14 aluminium adapter
  Max. backup fuse 32 A power circuit breaker (B characteristic)

Part Numbers

  EKV ÜGK MB S - 745 105



Earthing and short-circuiting device installed at a junction and fuse box of a street lighting mast


Earthing Handle (For low-voltage installations)

  For applying earthing and short-circuiting devices in low-voltage installations
  End fitting with plug-in coupling for handle extension
  Light-weight construction
  Hexagon shaft (width across flats 19) or T pin shaft

Part Numbers

Earthing Handle, STK hexagon shaft

  EG SK STK 400 - 745 415

Earthing Handle, STK T Pin shaft

  EG SQ STK 400 - 745 414



Applying an earthing and short-circuiting device in a low-voltage switchgear installation using an earthing handle


Two-pole SPN Voltage Detector (Nominal voltages up to 1000 V)

  Extremely shock-resistant, waterproof and dust-proof enclosure
  Sensor with easily identifiable switching point
  Two versions with different measuring ranges
  For use in overhead line networks by attaching extension prods
  No batteries required
  Safe two-hand operation
  CAT IV offers maximum safety against impulse voltage

Each handle of the voltage detector is fitted with a test button. These buttons activate the measuring element and LED display. High-resistance tests (LCD) can be performed without pressing the buttons and low-resistance tests by pressing the buttons.

Part Numbers

  SPN 500 - 766 541
  SPN 1000 - 766 545

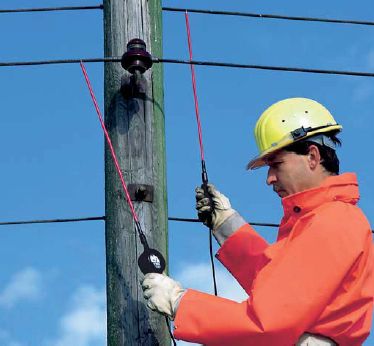

Two-pole SPN voltage detector used with extension prods for overhead lines


Equipment for Voltages up to 1000V Brochure
